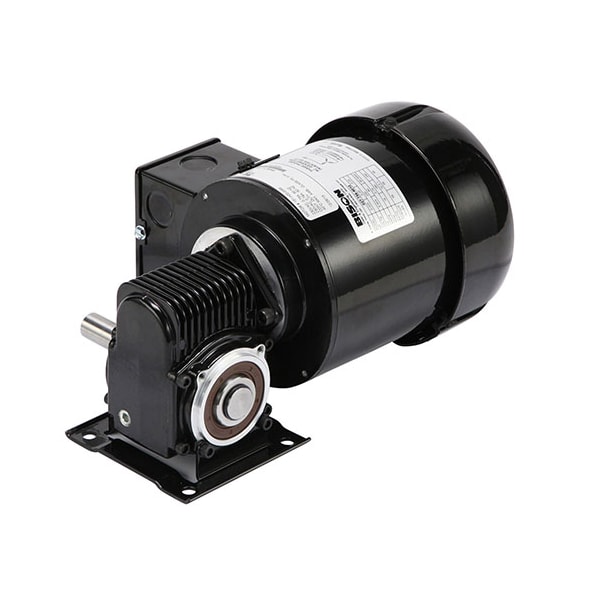

AC Gearmotor, 330RPM, 230V
Mfr # 027-756-4005
Zoro # G8715126
product price: $1,264.99
/ea
Free Shipping & Returns
Key Features
Standards
RoHS Compliant
Overall Length
10.1 in
Shaft Orientation
Right Angle
Phase
Three
Lubrication
Oil
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
027-756-4005
Zoro #
G8715126
UPC #
-
Country of Origin
United States
Dimensions
Overall Length
10.1 in
Overall Height
5.8 in
Keyway Width
3/16 in
Output Shaft Diameter
3/4 in
Keyway Depth
3/16 in
Details
Item
AC Gearmotor
Standards
RoHS Compliant
Shaft Orientation
Right Angle
Phase
Three
Lubrication
Oil
Gear Ratio
5.2:1
Input Horsepower
0.25 hp
Maximum Output Speed
495 RPM
Operating Voltage
230V AC
Motor Frame Designation
42 NEMA
IP Rating
IP44
Motor Duty Class
Continuous
Maximum Torque
30 in-lb
Number of Stages
1
Keyway Type
Square
Full Load Current
0.8 A
Motor Enclosure
Totally Enclosed Fan-Cooled
Output Shaft Type
Keyed
Description
AC Gearmotor, Motor Enclosure Totally Enclosed Fan-Cooled, Maximum Torque 30 in-lb, Operating Voltage 230V AC, Gear Ratio 5.2:1, Shaft Orientation Right Angle, Output Shaft Type Keyed, Motor Duty Class Continuous
