  6. AC Gearmotor, 480 in-lb Max. Torque, 21 RPM Nameplate RPM, 115/230V AC Voltage, 1 Phase

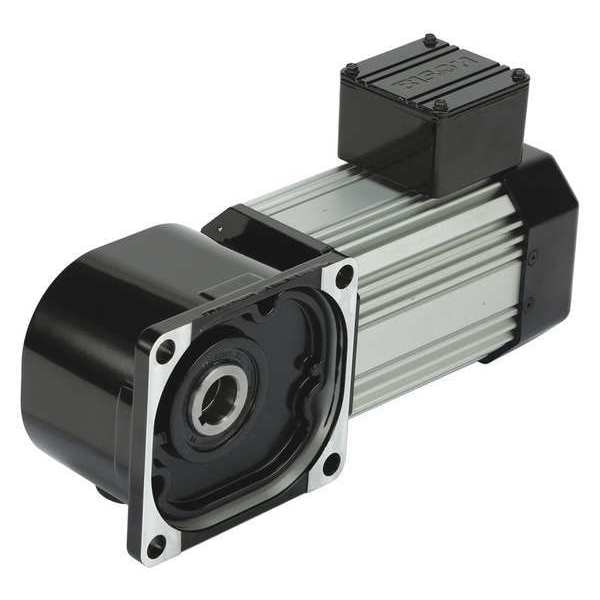

Bison Gear & Engineering AC Gearmotor, 480 in-lb Max. Torque, 21 RPM Nameplate RPM, 115/230V AC Voltage, 1 Phase 026-725E0080F - main

AC Gearmotor, 480 in-lb Max. Torque, 21 RPM Nameplate RPM, 115/230V AC Voltage, 1 Phase

  • Mfr # 026-725E0080F

  • Zoro # G0080888

product price:  $1,069.99
/ea
Free Shipping & Returns

Key Features

Gearmotor Voltage
115/230V AC
Gearmotor Phase
1
Gearmotor Type
AC Gearmotor
Max. Torque
480 in-lb
Gearmotor Shaft Type
Hollow
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
026-725E0080F
Zoro #
G0080888
UPC #
845171011659
Country of Origin
United States

Dimensions

Length Less Shaft
15.38 in
Overall Length
14.88 in
Overall Height
6.92 in
Mount Hole Center-to-Center Length
4.96 in
Output Shaft Diameter
1 in
Mount Hole Center-to-Center Width
4.33 in
Output Shaft Height
2.15 in
Overall Width
4.64 in
Housing Mount Hole Size
0.473 in

Details

Item
AC Gearmotor
Gearmotor Voltage
115/230V AC
Gearmotor Phase
1
Gearmotor Type
AC Gearmotor
Max. Torque
480 in-lb
Gearmotor Shaft Type
Hollow
Gearmotor Shaft Orientation
Right Angle
Nameplate RPM
21 RPM
Gearmotor Enclosure
Totally Enclosed Fan-Cooled
Gearmotor Rotation
CW/CCW
Gearmotor Brake Type
None
Gearmotor Mounting Position
All Angle
Full Load Amps
2.4/3.1 and 1.25/1.65
Standards
CURUS
Input HP
1/5 hp
Enclosure
TEFC
Phase
Single
Gear Ratio
80:1
Motor Type
Permanent Split Capacitor
Mounting
All-Positions
Hz
60/50 Hz
Brake
None
Gear Type
Hypoid
Overhung Load
620 lb
Insulation Class
F
Gear Material
Steel
Shaft Orientation
Right Angle
RPM Range
16 to 30
Service Factor
1
Seals
Lip-Type
Housing
Gearbox Powdered Coated Paint, Motor Anodized
No Load RPM
21 RPM
Reversible Shaft Output
Yes
Lubrication
Grease
Rotation
CW/CCW
Bearings
Ball
Max. Ambient Temp.
40 Degrees C
Capacitor Required
Yes
Voltage
115/230
Thermal Protection
None
Number of Brake Discs Required
0
Application
Agriculture, Conveyors, Food and Beverage Equipment, Industrial Machinery, Packaging
Gear Case Material
Aluminum
Shaft
Hollow Output
Housing Material
Gearbox Powdered Coated Paint, Motor Anodized
Motor Duty Class
Continuous
Inverter Rated
No
Inverter Rating
80:1
Brake Type
None
Compatible Capacitor Manufacturer Part Number
45 MFD 370V Capacitor
Output Shaft Type
Hollow
Seal Type
Lip Type
Number of Housing Mount Holes
4
Bearing Type
Ball
Maximum Torque
360 in-lb
No Load Speed
21 RPM
Input Horsepower
0.2 hp
Operating Voltage
115/230V AC
Overhung Load Capacity
580 lb
Maximum Output Speed
18 RPM @ 50 Hz, 21 RPM @ 60 Hz
Maximum Ambient Temperature
104 Degrees F
Nameplate Speed
21 RPM
Full Load Current
1.25 A @ 60 Hz @ 230VC, 1.65 A @ 50 Hz @ 230VC, 2.4 A @ 60 Hz @ 115VC, 3.1 A @ 50 Hz @ 115VC
Mount Type
All Angle
Motor Enclosure
Totally Enclosed Fan-Cooled
Motor Insulation Class
F
Mounting Orientation
Any Angle
Frequency
50 Hz, 60 Hz

Description

AC Gearmotor, Motor Type Permanent Split Capacitor, Motor Enclosure Totally Enclosed Fan-Cooled, Nameplate Speed 21 RPM, Maximum Torque 360 in-lb, Overhung Load Capacity 580 lb, Rotation CW/CCW, Output Shaft Height 2.15 in, Mounting Orientation Any Angle, Operating Voltage 115/230V AC, Inverter Rated No, Gear Ratio 80:1, Brake Type None, Shaft Orientation Right Angle, Output Shaft Type Hollow, Motor Insulation Class F, Compatible Capacitor Manufacturer Part Number 45 MFD 370V Capacitor
