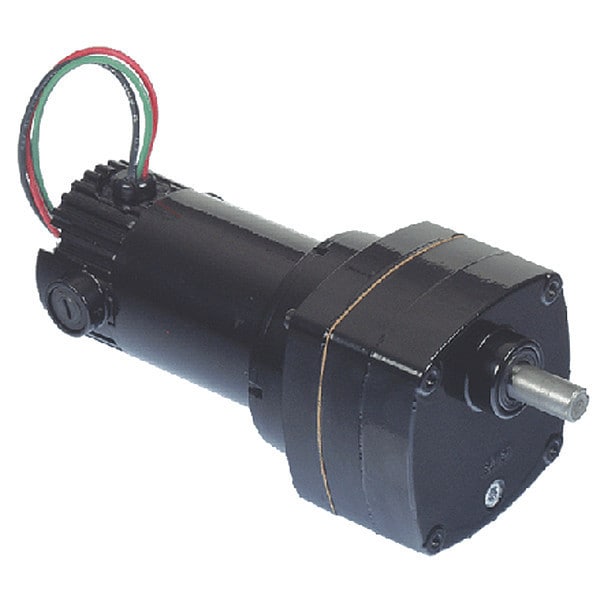

DC Gearmotor, 185 RPM, 90V
Mfr # 011-190-0010
Zoro # G9650676
product price: $551.99
/ea
Free Shipping & Returns
Key Features
Shaft Orientation
Parallel
Motor Type
Permanent Magnet DC
Rotation
CW/CCW
Gear Ratio
9.7:1
Gear Material
Powdered Metal (Spur), Steel (1st Stage)
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
011-190-0010
Zoro #
G9650676
UPC #
-
Country of Origin
United States
Dimensions
Length Less Shaft
7.38 in
Overall Length
8.8 in
Output Shaft Diameter
1/2 in
Housing Mount Hole Size
0.28 in
Keyway Length
3/4 in
Output Connection Depth
1 7/16 in
Keyway Depth
1/8 in
Overall Width
3.75 in
Keyway Width
1/8 in
Mount Hole Center-to-Center Width
1.88 in
Mount Hole Center-to-Center Length
3.75 in
Description
DC Gearmotor,185 RPM,90V, Shaft Orientation Parallel, Output Shaft Type Keyed, Motor Enclosure Totally Enclosed Nonventilated, Operating Voltage 90V DC, Motor Type Permanent Magnet DC, Maximum Torque 15 in-lb, Overhung Load Capacity 218 lb, Rotation CW/CCW, Mounting Orientation Any Angle, Gear Ratio 9.7:1, Input Horsepower 1/20 hp, Motor Insulation Class F, Output Connection Depth 1 7/16 in, Output Shaft Diameter 1/2 in, Bearing Type Ball, Needle, Color Black
