No Product Image Available

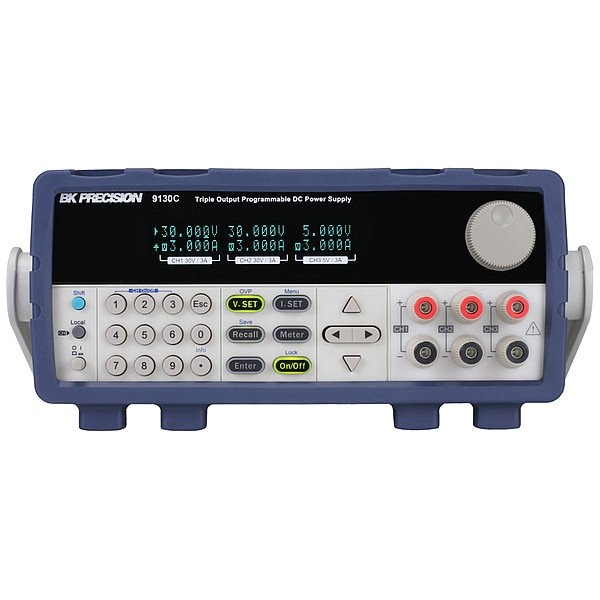

Bench Power Supply

  • Mfr # 9130C

  • Zoro # G605311355

product price: $1,581.99
/ea
Free Shipping & Returns

Key Features

Ripple Volts Regulation
Less Than or Equal To 1 mVrms
Manufacturers Warranty Length
3 yr
Includes
Power Cord
Load Regulation
Less Than or Equal To 0.1% +3 mA; Less Than or Equal To 0.01% +3 mV
Meter Type
Digital
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
9130C
Zoro #
G605311355
UPC #
817050913033
Country of Origin
China

Dimensions

Manufacturers Warranty Length
3 yr
Height
3.47 in
Depth
13.96 in
Width
8.45 in
Overall Width
8.45 in
Overall Depth
13.96 in
Overall Height
3.47 in

Details

Item
Bench Power Supply
Ripple Volts Regulation
Less Than or Equal To 1 mVrms
Includes
Power Cord
Load Regulation
Less Than or Equal To 0.1% +3 mA; Less Than or Equal To 0.01% +3 mV
Meter Type
Digital
Line Regulation
Less Than or Equal To 0.1% +3 mA; Less Than or Equal To 0.01% +3 mV
Input Voltage
110/220 VAC +/- 10 %
Output Volts (DC)
0 to 30V (Ch1 and Ch2); 0 to 5V (Ch3)
Line Volts Regulation
Less Than or Equal to 0.01% + 3 mV
Output Current (Amps)
0 to 3 A
Protection
Keylock Function, OTP, OVP
Connection
Standard USB (USBTMC Compliant) and RS232 Interfaces
Display
Vacuum Fluorescent Display
Input Frequency (Hz)
47 to 63 Hz
Standards
NSF-ISR 6Z241-IS8
Current Limits
Independently to Output Higher Voltage or Current
Type
Programmable
Calibration Certificate
NI Certified
Interface
RS-232, USB
Number of Displays
2
Current Output 2 - Maximum
3 A
Voltage Output 2 - Maximum
30 V DC
Voltage Output 2 - Minimum
0 V DC
Calibration Certificate Type
NIST
Line Regulation Current
0.2% + 3 mA
Voltage Output 3 - Minimum
0 V DC
Line Regulation Voltage
0.01% + 3mv
Voltage Output 3 - Maximum
5 V DC
Voltage Output 1 - Maximum
30 V DC
Current Output 3 - Minimum
0 A
Current Output 2 - Minimum
0 A
Current Output 1 - Minimum
0 A
Current Output 3 - Maximum
3 A
Load Regulation Current
0.1% + 3 mA
Ripple Voltage Regulation
1m Vrms
Current Output 1 - Maximum
3 A
Number of Display Digits
4
Voltage Output 1 - Minimum
0 V DC
Load Regulation Voltage
0.01% + 3 mV

Description

Bench Power Supply, Line Regulation Less Than or Equal To 0.1 Percent +3 mA; Less Than or Equal To 0.01 Percent +3 mV, Load Regulation Less Than or Equal To 0.1 Percent +3 mA; Less Than or Equal To 0.01 Percent +3 mV, Meter Type Digital, Includes Power Cord, Manufacturers Warranty Length 3 yr
