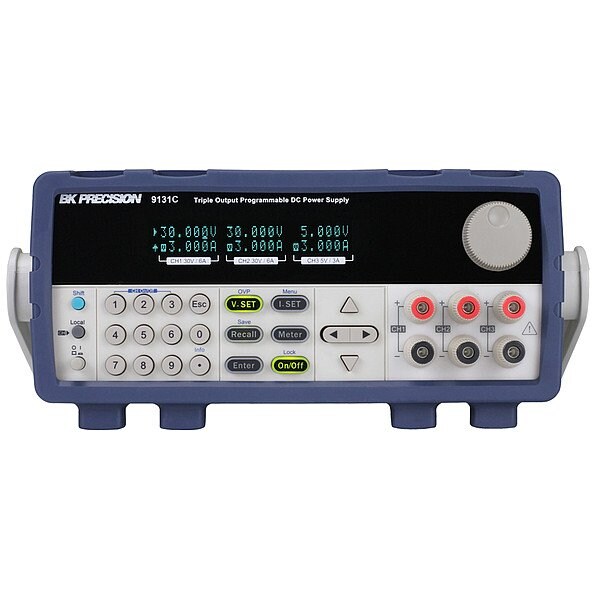

Bench Power Supply

  • Mfr # 9131C

  • Zoro # G608229534


product price: $2,359.99
/ea
Free Shipping & Returns

Key Features

Ripple Volts Regulation
Less Than or Equal To 1 mVrms
Manufacturers Warranty Length
3 yr
Includes
Power Cord
Load Regulation
Less Than or Equal To 0.1% +3 mA; Less Than or Equal To 0.01% +3 mV
Meter Type
Digital
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
9131C
Zoro #
G608229534
UPC #
817050913132
Country of Origin
China

Dimensions

Manufacturers Warranty Length
3 yr
Height
3.47 in
Depth
17.52 in
Width
8.45 in
Overall Width
8.45 in
Overall Depth
13.96 in
Overall Height
3.47 in

Details

Item
Bench Power Supply
Ripple Volts Regulation
Less Than or Equal To 1 mVrms
Includes
Power Cord
Load Regulation
Less Than or Equal To 0.1% +3 mA; Less Than or Equal To 0.01% +3 mV
Meter Type
Digital
Line Regulation
Less Than or Equal To 0.1% +3 mA; Less Than or Equal To 0.01% +3 mV
Input Voltage
110/220 VAC +/- 10 %
Output Volts (DC)
0 to 30V (Ch1 and Ch2); 0 to 5V (Ch3)
Line Volts Regulation
Less Than or Equal to 0.01% + 3 mV
Output Current (Amps)
0 to 3 A, 0 to 6 A
Protection
Keylock Function, OTP, OVP
Connection
Standard USB (USBTMC Compliant) and RS232 Interfaces
Display
Vacuum Fluorescent Display
Type
Programmable
Input Frequency (Hz)
47 to 63 Hz
Standards
NSF-ISR 6Z241-IS8
Current Limits
Independently to Output Higher Voltage or Current
Calibration Certificate
NI Certified
Voltage Output 3 - Maximum
5 V DC
Current Output 3 - Maximum
3 A
Ripple Voltage Regulation
1m Vrms
Number of Display Digits
4
Line Regulation Current
0.2% + 3 mA
Current Output 1 - Minimum
0 A
Voltage Output 1 - Minimum
0 V DC
Interface
RS-232, USB
Current Output 2 - Minimum
0 A
Current Output 1 - Maximum
6 A
Voltage Output 3 - Minimum
0 V DC
Calibration Certificate Type
NIST
Current Output 3 - Minimum
0 A
Voltage Output 2 - Maximum
30 V DC
Current Output 2 - Maximum
6 A
Number of Displays
2
Voltage Output 2 - Minimum
0 V DC
Load Regulation Voltage
0.01% + 3 mV
Line Regulation Voltage
0.01% + 3mv
Load Regulation Current
0.1% + 3 mA
Voltage Output 1 - Maximum
30 V DC

Description

Bench Power Supply, Line Regulation Less Than or Equal To 0.1 Percent +3 mA; Less Than or Equal To 0.01 Percent +3 mV, Load Regulation Less Than or Equal To 0.1 Percent +3 mA; Less Than or Equal To 0.01 Percent +3 mV, Meter Type Digital, Includes Power Cord, Manufacturers Warranty Length 3 yr
