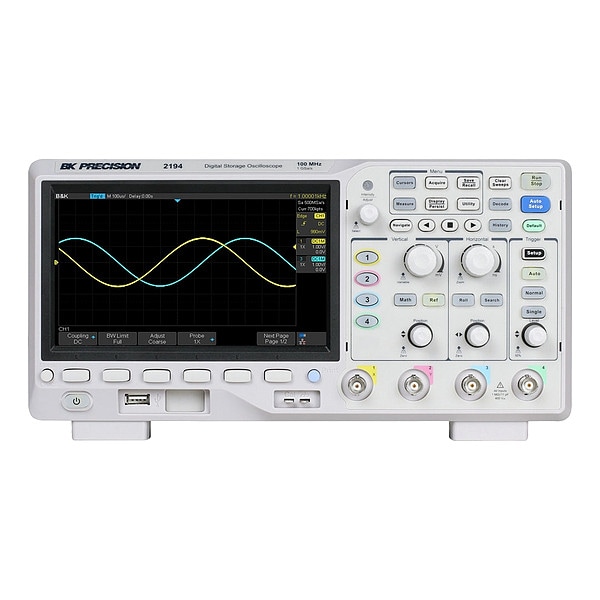

Digital Storage Oscilloscope, 4 Channels
Mfr # 2194
Zoro # G610108216
product price:Â
$
884.99
/ea
Free Shipping & Returns
Key Features
Features
FTT, Segmented Acquisition, Serial Decoding for Five Different Communication Protocols
Display
7 in Color TFT-LCD
Channels
4
Triggering Mode
Line-Selectable Video, Pulse Width
Bandwidth (MHz)
100 MHz
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 2194
- Zoro #
- G610108216
- UPC #
- 817050219067
- Country of Origin
- China
Dimensions
- Bandwidth (MHz)
- 100 MHz
- Manufacturers Warranty Length
- 3 yr
Details
- Item
- Digital Storage Oscilloscope
- Features
- FTT, Segmented Acquisition, Serial Decoding for Five Different Communication Protocols
- Display
- 7 in Color TFT-LCD
- Channels
- 4
- Triggering Mode
- Line-Selectable Video, Pulse Width
- Input Sensitivity
- 1 mV/div to 10 V/div
- Glitch Capture
- Yes
- FFT Analysis
- Yes
- Persistence
- 1 sec, 10 sec, 30 sec, 5 sec, Infinite, Off
- Waveform / Measurement Stored
- USB Host Port
- Calibration Certificate
- Yes
- Sampling Rate
- 1 GSa/s
- Interface
- LAN, USB
- Cursors and Zoom
- Yes
Description
Digital Storage Oscilloscope, Bandwidth (MHz) 100 MHz, 4 Channels, 7 in Color TFT-LCD Display, Sampling Rate 1 GSa/s, USB Host Port Waveform / Measurement Stored, FFT Analysis Yes, Cursors and Zoom Yes, Line-Selectable Video, Pulse Width Triggering Mode, Input Sensitivity 1 mV/div to 10 V/div, 1 sec, 10 sec, 30 sec, 5 sec, Infinite, Off Persistence, Glitch Capture Yes, LAN, USB Interface, Features FTT, Segmented Acquisition, Serial Decoding for Five Different Communication Protocols
