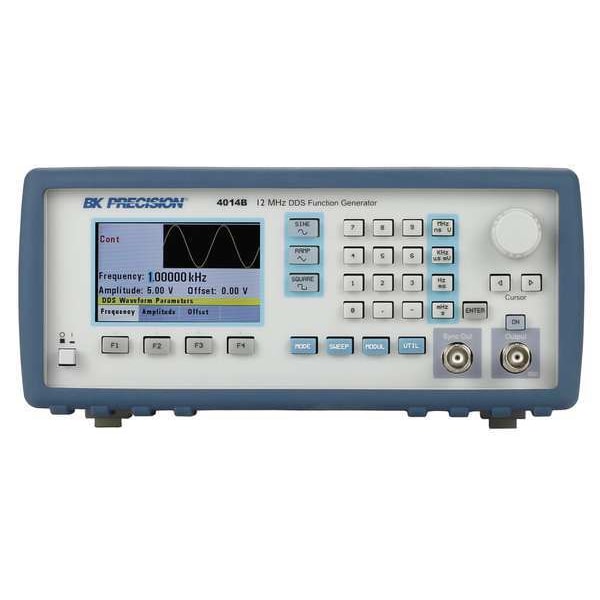

Function Generator, 12MHz, AM/FM
Mfr # 4014B
Zoro # G8092131
product price:Â $589.99
/ea
Free Shipping & Returns
Key Features
Type
DDS Function
Sine Wave Range
0.01 Hz to 12 MHz
Square Wave Range
0.01 Hz to 12 MHz
Other Waveform Range
Triangle 0.1 to 12 MHz
Sine Wave Distortion
DC - 1 MHz, Less Than -60 dBc,1 MHz - 5 MHz, Less Than -50 dBc,5 MHz - 12 MHz, Less Than -45 dBc
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
MFR #
4014B
Zoro #
G8092131
UPC #
817050401424
Country of Origin
Taiwan, Province of China
Dimensions
Manufacturers Warranty Length
3 yr
Description
Signal Generator, DDS Function, Sine Wave Range 0.01 Hz to 12 MHz, Square Wave Range 0.01 Hz to 12 MHz, Other Waveform Range Triangle 0.1 to 12 MHz, Sine Wave Distortion DC - 1 MHz, Less Than -60 dBc,1 MHz - 5 MHz, Less Than -50 dBc,5 MHz - 12 MHz, Less Than -45 dBc, Sq. Wave Rise/Fall Time (nS) Less Than 20, Output Amplitude 10 mVpp to 10 Vpp (into 50 ohm), 20 mVpp to 20 Vpp (Open Circuit), Impedance (Ohms) 50 ohm, Output Attenuation +/-0.5 dB to 1 MHz, +/-1 dB to 12 MHz
