Shop B&K PRECISION

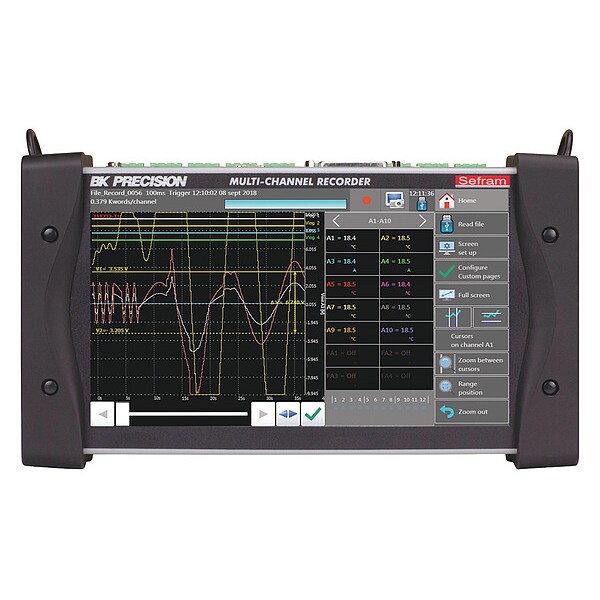

Paperless Recorder, 20 to 200 Channl, LCD

  • Mfr # DAS220-BAT
  • Zoro # G0160712
product price:
$
3,186.99
/ea
Free Shipping & Returns

Key Features

Temp. Range
-418 Degrees to 4,308 Degrees F
Display
Color LCD
Manufacturers Warranty Length
2 yr
Power Source
100 to 240V AC
Characteristics
Touchscreen Display, Universal Inputs, Internal Solid State Memory, Fast Recording Interval, Alarm Output, Multiple Remote Interfaces, Free Operating Software
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
DAS220-BAT
Zoro #
G0160712
UPC #
817050692211
Country of Origin
France

Dimensions

Manufacturers Warranty Length
2 yr
Memory Size
Up to 32 GB Compact Flash
Overall Height
11 3/4 in
Overall Length
2 5/8 in
Overall Width
6 7/8 in
Wire Rope Length
2 5/8 in
Length
2 5/8 in
Fits Chest Size
(10) Built-In Universal Analog Inputs, (12) Logic Input/Output Channels, 16-bit Vertical Resolution, (4)Timing Logic Input Channels for Pulse Count, Frequency and PWM Measurements, 15 Hour Battery Life, Measure Voltage to +/-100V, PC Software for Viewing Data, Supports Pt100 Temperature Sensor, Supports Pt1000 Temperature Sensor, Supports Thermocouples, Wi-Fi Monitoring Control

Details

Temp. Range
-418 Degrees to 4,308 Degrees F
Display
Color LCD
Item
Paperless Recorder
Power Source
100 to 240V AC
Characteristics
Touchscreen Display, Universal Inputs, Internal Solid State Memory, Fast Recording Interval, Alarm Output, Multiple Remote Interfaces, Free Operating Software
RTD Type
100 Ohm Pt 100, 100 Ohm Pt 1000, 2 or 3 Wire
Thermocouple Type
B, C, E, J, K, L, N, R, S, T
Current Range
4-20mADC
Channels
10
Includes
AC Adapter, Calibration Certificate, Screwdriver, Shoulder Strap, Soft Wipe, Stylus
Voltage Range
0 mV DC to 100 mV DC
Features
(10) Built-In Universal Analog Inputs, (12) Logic Input/Output Channels, 16-bit Vertical Resolution, (4)Timing Logic Input Channels for Pulse Count, Frequency and PWM Measurements, 15 Hour Battery Life, Measure Voltage to +/-100V, PC Software for Viewing Data, Supports Pt100 Temperature Sensor, Supports Pt1000 Temperature Sensor, Supports Thermocouples, Wi-Fi Monitoring Control
Voltage - Minimum
0V DC
Voltage - Maximum
100V DC
Number of Channels
10
Memory Storage
32 GB Internal
Current - Maximum
20 mA DC
Display Type
Backlit LCD
Operating Temperature - Maximum
104 Degrees F
Operating Temperature - Minimum
32 Degrees F

Description

Paperless Recorder, Thermocouple Type B, C, E, J, K, L, N, R, S, T, Voltage - Maximum 100V DC, Current - Maximum 20 mA DC, Current - Minimum Not Applicable

Restrictions

Hazardous material
