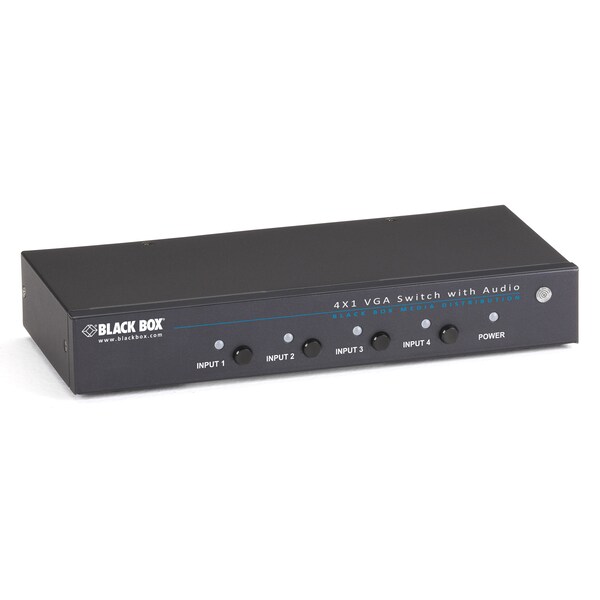

Black Box 4 X 1 Vga Switch w/ Serial And Audio AVSW-VGA4X1A - main

4 X 1 Vga Switch w/ Serial And Audio

  • Mfr # AVSW-VGA4X1A

  • Zoro # G0409338

product price: $278.99
/ea
Free Shipping & Returns

Key Features

Connector Type
Input: (4) HD15 (Male) (VGA); (4) 3.5-mm Jack (Audio); (1) 1.7-mm DCE Jack (Serial, for use with included Adapter); Output: (1) HD15 (Female) (VGA); (1) 3.5-mm Jack (Audio)
Width
8.6 in
Height
1.3 in
Standards
CE
Input Voltage
110 V AC, 220 V AC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
AVSW-VGA4X1A
Zoro #
G0409338
UPC #
-
Country of Origin
Unknown

Dimensions

Width
8.6 in
Height
1.3 in
Depth
3.9 in

Details

Item
Audio/Video Switchbox
Connector Type
Input: (4) HD15 (Male) (VGA); (4) 3.5-mm Jack (Audio); (1) 1.7-mm DCE Jack (Serial, for use with included Adapter); Output: (1) HD15 (Female) (VGA); (1) 3.5-mm Jack (Audio)
Standards
CE
Input Voltage
110 V AC, 220 V AC
Power Consumption
4.50 W
Frequency
50/60 Hz
Output Voltage
9 to 12V DC
Max. Resolution
Full HD 1080p (1920 x 1080), WUXGA (1920 x 1200), 1920 x 1440
Indicators
(4) LEDs: (1) per each port (for active status of VGA input source)
Maximum Resolution
1920 x 1440
Serial Port
Yes
Number of VGA Outputs
1
Audio Line In
Yes
Audio Line Out
Yes
Environmentally Friendly
Yes
VGA Out
Yes
VGA In
Yes
Number of Displays Supported
1
Includes
4 x 1 VGA Switch With Serial And Audio, 1 x Power Supply, 4 x Rubber Feet, 1 x Serial DB9 to 1.7-mm Barrel Adapter, 2 x Rackmount Ears With Screws, User Manual
Number of Input Devices Supported
4
Number of VGA Inputs
4
Mounting
Rack-mountable
Device Supported
Projector, Display
Connectivity Technology
Cable

Description

Documents & Resources

Restrictions

This item has been restricted from sale in the following states: CA
