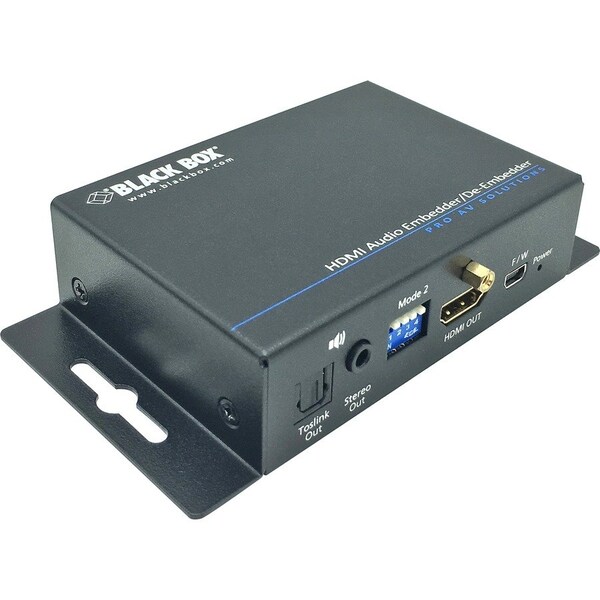

Black Box BLACK BOX, Audio Embedder/De-embedder AEMEX-HDMI-R2 - main

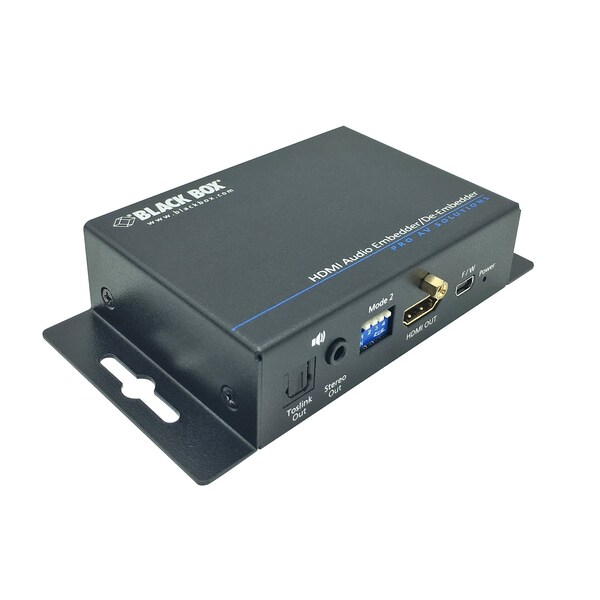

BLACK BOX, Audio Embedder/De-embedder

  • Mfr # AEMEX-HDMI-R2

  • Zoro # G9379510

product price: $222.99
/ea
Free Shipping & Returns

Key Features

Dimensions
1.03 in x 3.74 in x 2.61 in
Resolution
4K at 60 Hz 4:4:4
Standards
CE, FCC2, WEEE, UL
Voltage
Input: 100 to 240V AC; Output: 5V DC
Connector Type
Input: (1) Screw Lock Barrel Power Connector; (1) USB Mini for Power and Firmware Upgrades; (1) HDMI; (1) 3.5-mm Analog Audio; (1) TOSlink Digital Optical Audio; Output: (1) HDMI; (1) 3.5-mm Analog Audio; (1) Digital Optical Audio
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
AEMEX-HDMI-R2
Zoro #
G9379510
UPC #
822088130635
Country of Origin
Unknown

Dimensions

Dimensions
1.03 in x 3.74 in x 2.61 in
Video Bandwidth
Single-link 594 MHz (18 Gbps)

Details

Item
Audio Embedder/De-embedder
Resolution
4K at 60 Hz 4:4:4
Standards
CE, FCC2, WEEE, UL
Voltage
Input: 100 to 240V AC; Output: 5V DC
Connector Type
Input: (1) Screw Lock Barrel Power Connector; (1) USB Mini for Power and Firmware Upgrades; (1) HDMI; (1) 3.5-mm Analog Audio; (1) TOSlink Digital Optical Audio; Output: (1) HDMI; (1) 3.5-mm Analog Audio; (1) Digital Optical Audio
CECC Channel
Bypass
Frequency
50/60 Hz
Operating Temperature
32 to 104°F
Humidity
20 to 90%, Noncondensing
Enclosure Material
Metal
User Controls
(1) 2-position DIP switch, (1) 4-position DIP switch
Amperage
Input: 0.58 A; Output: 4 A
Altitude
10,000 ft
ESD Protection
Human body model: +/- 19 kV (air-gap discharge) and 12 kV (contact discharge); Core chipset: +/- 2 kV
Video Support
Up to 4K @ 60 Hz in 4:4:4 color
Storage Temperature
-4 to 104°F
Audio Support
Supports HDMI, 3.5-mm analog audio, TOSLINK optical audio inputs and outputs; Embeds audio from either 3.5-mm or optical source to an HDMI or DVI-D signal

Restrictions

This item has been restricted from sale in the following states: CA
