  9. BLACK BOX Ethernet Switch 10-Port 10/100/1000 Mb/s Managed

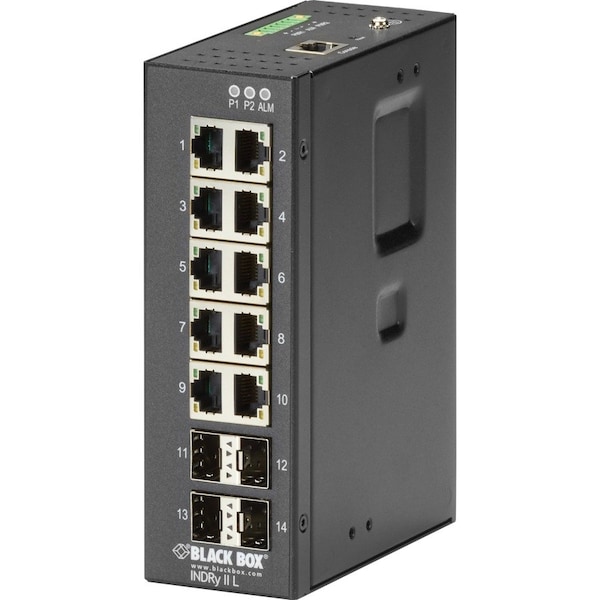

Black Box BLACK BOX Ethernet Switch 10-Port 10/100/1000 Mb/s Managed LIG1014A - main

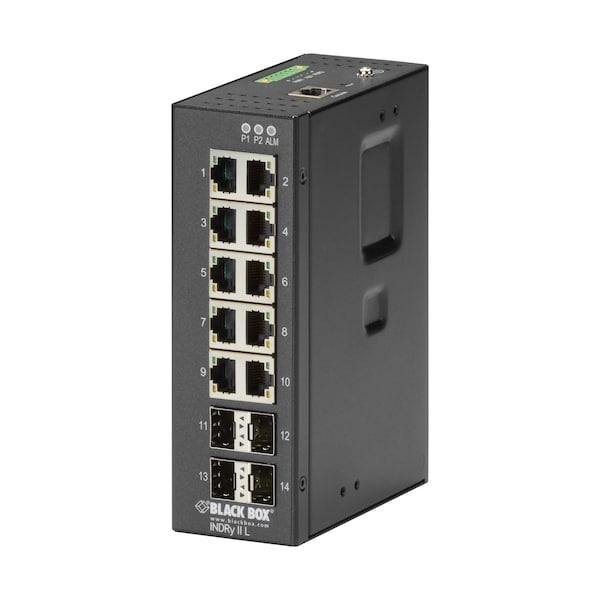

BLACK BOX Ethernet Switch 10-Port 10/100/1000 Mb/s Managed

  • Mfr # LIG1014A

  • Zoro # G0839829

product price: $830.99
/ea
Free Shipping & Returns

Key Features

Input Voltage
12 V DC, 58 V DC
Speed
10/100/1000 Mbps
Description/Special Features
Link loss recovery < 20ms; Single and multiple rings supported; Fast failover protection rings: Link loss recovery <20ms; Single & Multiple rings supported;Spanning Tree Protocol: IEEE 802.1D STP, IEEE 802.1w RSTP, IEEE 802.1s MSTP; Port Trunk with LACP: Static trunk or Dynamic via LACP (Link Aggregation Control Protocol); NTP/SNTP
Depth
4.3 in
Operating Temp. Range (F)
-40 to 167°F
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
LIG1014A
Zoro #
G0839829
UPC #
822088079569
Country of Origin
Unknown

Dimensions

Depth
4.3 in
Height
6 in
Width
2.4 in
Frame Size Supported
9K bytes

Details

Item
Ethernet Switch
Input Voltage
12 V DC, 58 V DC
Speed
10/100/1000 Mbps
Description/Special Features
Link loss recovery < 20ms; Single and multiple rings supported; Fast failover protection rings: Link loss recovery <20ms; Single & Multiple rings supported;Spanning Tree Protocol: IEEE 802.1D STP, IEEE 802.1w RSTP, IEEE 802.1s MSTP; Port Trunk with LACP: Static trunk or Dynamic via LACP (Link Aggregation Control Protocol); NTP/SNTP
Operating Temp. Range (F)
-40 to 167°F
Mounting
DIN Rail, Wall
Standards
CE; WEEE; EN61000-6-2, EN61000-6-4;
Connector Type
(10) RJ45; (4) SFP
Includes
Hardened Managed Ethernet Switch, 4 x M3 SCREWS, 2 x PANEL MOUNT BRACKETS, 1 x DIN RAIL CLIP, 1 x 6-POSITION PHOENIX CONNECTOR, 5 x RJ-45 ETHERNET PORT DUST COVERS, 4 x SFP ETHERNET PORT DUST COVERS
Operation Description
Store and forward; L2 wire-speed, non-blocking switching engine
Application
Industrial
Link Layer Discovery Protocol
IEEE 802.1ab
Management Information Base
RFC 1757 RMON 1,2,3,9; RFC 2674 Q-Bridge MIB; RFC-1213 MIB-II; RFC-1493 Bridge MIB; RFC 2233 IF MIB
Link Aggregation
Static trunk or Dynamic via LACP (Link Aggregation Control Protocol)
Port Security
IP and MAC-based access control; IEEE 802.1X authentication Network Access Control
Indicators
LEDs: Power, Ethernet Port
Storage Temperature
-40 to 185°F
Flow Control
IEEE 802.3x full-duplex, Back-pressure half-duplex
Management Security
HTTPs; SSH; Radius client
VLAN Support
IEEE 802.3x (Full Duplex) and Back-Pressure (Half Duplex) flow control;256 Port-based VLANs;IEEE 802.1Q tag-based VLANs;IEEE 802.1ad Double Tagging (Q in Q)
MAC Address
8K
Humidity
5 to 95%, Noncondensing
Multicast Protocols
IGMP v1, v2 with up to 255 multicast groups; IGMP snooping and querying; Immediate leave and leave proxy; Throttling and filtering
Power Consumption
11 W
IP Rating
IP30
PoE (RJ-45) Port
No
Network (RJ-45)
Yes
Manageable
Yes
Media Type Supported
Optical Fiber, Twisted Pair
Number of SFP Slots
4
Port/Expansion Slot Details
10 x Gigabit Ethernet Network, 4 x Gigabit Ethernet Expansion Slot
Total Number of Expansion Slots
4
Total Number of Network Ports
10
Ethernet Technology
Gigabit Ethernet
Power Source
DC
Networking Standards
IEEE 802.3at, IEEE 802.3af
Green Environmental Attribute
Environmentally Friendly
Network Technology
1000Base-X, 10/100/1000Base-T
Expansion Slot Type
SFP
Mounting Type
Wall Mountable, DIN Rail Mountable
Layer Supported
2
Environmentally Friendly
Yes

Description

Black Box Hardened Managed Ethernet Switch - 10 Ports - Manageable - Gigabit Ethernet - 1000Base-X, 10/100/1000Base-T - 2 Layer Supported - 4 SFP Slots - 11 W Power Consumption - Twisted Pair, Optical Fiber - DIN Rail Mountable, Wall Mountable - 1 Year Limited Warranty
