- Item

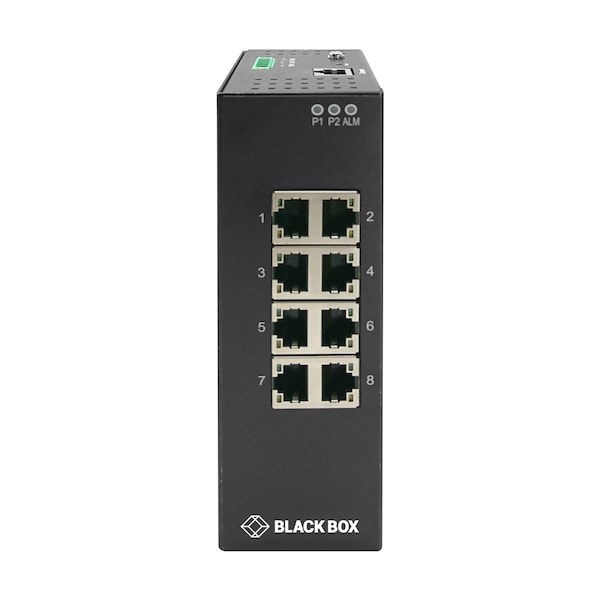

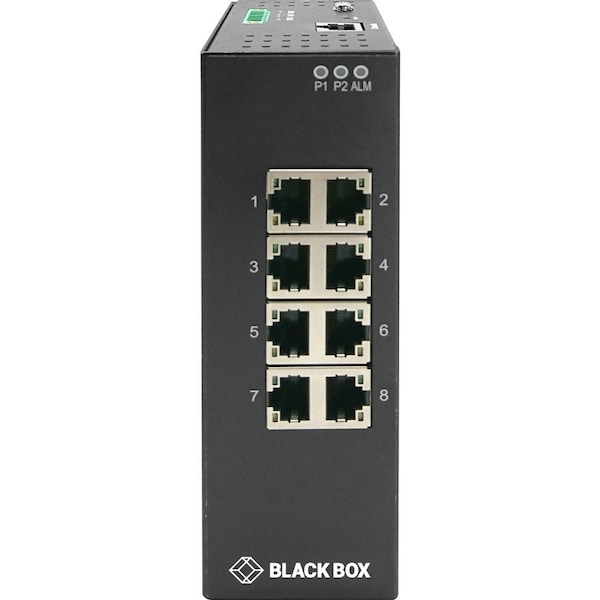

- Ethernet Switch
- Input Voltage
- 12 V DC, 58 V DC
- Speed
- 10/100/1000 Mbps
- Description/Special Features
Link loss recovery < 20ms; Single and multiple rings supported; Fast failover protection rings: Link loss recovery <20ms; Single & Multiple rings supported; Spanning Tree Protocol: IEEE 802.1D STP, IEEE 802.1w RSTP, IEEE 802.1s MSTP; Port Trunk with LACP: Static trunk or Dynamic via LACP (Link Aggregation Control Protocol)
- Connector Type
- (8) RJ45
- Mounting
- Wall, DIN Rail
- Operating Temp. Range (F)
- -40 to 167°F
- Standards
- CE; WEEE; EN61000-6-2, EN61000-6-4;; CE Approval
- Includes
- LIG1000 Series Gigabit Ethernet (1000-Mbps) Extreme Temperature Managed Switch - (8)-10/100/1000-Mbps Copper RJ45, 2 x Wallmount Plates, 1 x DIN Rail Clip, 1 x DC Power Terminal Block, 6 x RJ-45 Port Dust Covers, 2 x SFP Port Dust Covers
- Operation Description
- Store and forward; L2 wire-speed, non-blocking switching engine
- Mounting Type
- Wall Mountable, DIN Rail Mountable
- Application
- Industrial
- User Controls
CLI, WEB-based Management; SNMP v1, v2c, v3; Telnet (5 sessions); HTTPs, SSH; Radius Client for Management; TFTP/FTP for Configuration Import/Export; TFTP/FTP for Firmware Upgrade; Syslog; RFC 1757 RMON 1,2,3,9; RFC 2674 Q-Bridge MIB; RFC-1213 MIB-II; RFC-1493 Bridge MIB; RFC 2233 IF MIB; DHCP; NTP/SNTP
- Link Layer Discovery Protocol
- IEEE 802.1ab
- Indicators
- LEDs: Power, Ethernet port link and speed
- Humidity
- 5 to 95%, Noncondensing
- Spanning Tree Protocol
- IEEE 802.1D STP, IEEE 802.1w RSTP, IEEE 802.1s
- Management Information Base
- RFC 1757 RMON 1,2,3,9; RFC 2674 Q-Bridge MIB;RFC-1213 MIB-II; RFC-1493 Bridge MIB; RFC 2233 IF MIB
- Storage Temperature
- -40 to 185°F
- Management Security
- HTTPs, SSH; Radius Client for Management
- Link Aggregation
- Static trunk or Dynamic via LACP (Link Aggregation Control Protocol)
- VLAN Support
- IEEE 802.1Q tag-based; IEEE 802.1ad Double Tagging; IGMP v1, v2; IGMP snooping and querying; Immediate leave and leave proxy; Throttling and filtering; IEEE 802.1ab Link Layer Discovery Protocol (LLDP)
- Port Security
- IP and MAC-based access control; IEEE 802.1X authentication Network Access Control
- IP Rating
- IP30
- MAC Address
- 8K
- Power Consumption
- 10.50 W
- Network (RJ-45)
- Yes
- Green Environmental Attribute
- Environmentally Friendly
- Network Technology
- 10/100/1000Base-T
- Total Number of Network Ports
- 8
- Port/Expansion Slot Details
- 8 x RJ-45 Gigabit Ethernet Network
- Networking Standards
- IEEE 802.1ab, IEEE 802.3af, IEEE 802.1x, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ad, IEEE 802.1p, IEEE 802.1w (RSTP), IEEE 802.1s, IEEE 802.3at
- Ethernet Technology
- Gigabit Ethernet
- Power Source
- DC
- Manageable
- Yes
- Media Type Supported
- Twisted Pair
- PoE (RJ-45) Port
- No
- Layer Supported
- 2
- Maximum Data Transfer Rate
- 128-MB/s
- Data Link Protocols
- Link Layer Discovery Protocol (LLDP)
