  9. BLACK BOX Kvx Series Displayport Fiber Kvm Extender, Sh, Tx+Rx

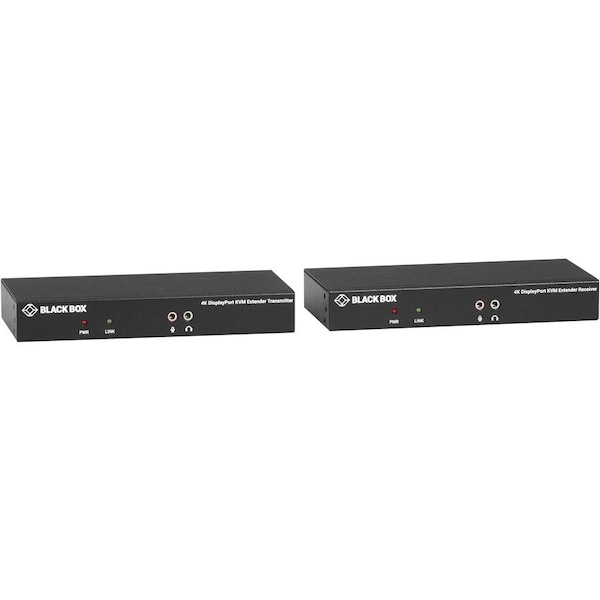

Black Box BLACK BOX Kvx Series Displayport Fiber Kvm Extender, Sh, Tx+Rx KVXLCDPF-100 - main

BLACK BOX Kvx Series Displayport Fiber Kvm Extender, Sh, Tx+Rx

  • Mfr # KVXLCDPF-100

  • Zoro # G0109640

product price: $726.99
/ea
Free Shipping & Returns

Key Features

Connector Type
TRANSMITTER Host Connection: Video Input: (1) DisplayPort (Female); Serial Control Port: (1) DB9 (Female); Link Port: (1) SFP Cage; USB: (1) USB Type-B (Female); Audio: (1) Line in; (1) Line out; Local Video Output: (1) DisplayPort (Female) RECEIVER Console Connection: ; Video Output: (1) DisplayPort (Female); Serial Control Port: (1) DB9 male; Link Port: (1) SFP Cage; USB: (4) USB Type-A (Female); Audio: (1) Mic In; (1) Speaker Out
Housing Material
Metal
Height
Receiver: 0.83 in; Transmitter: 0.83 in
Depth
Receiver: 7.09 in; Transmitter: 7.09 in
Width
Receiver: 3.27 in; Transmitter: 3.27 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
KVXLCDPF-100
Zoro #
G0109640
UPC #
-
Country of Origin
Unknown

Dimensions

Height
Receiver: 0.83 in; Transmitter: 0.83 in
Depth
Receiver: 7.09 in; Transmitter: 7.09 in
Width
Receiver: 3.27 in; Transmitter: 3.27 in
Transmitter Width
3.27 in
Rack Height
1U
Transmitter Depth
7.09 in
Receiver Depth
7.09 in
Receiver Height
0.83 in
Transmitter Height
0.83 in
Receiver Width
3.27 in

Details

Item
KVM Extender
Connector Type
TRANSMITTER Host Connection: Video Input: (1) DisplayPort (Female); Serial Control Port: (1) DB9 (Female); Link Port: (1) SFP Cage; USB: (1) USB Type-B (Female); Audio: (1) Line in; (1) Line out; Local Video Output: (1) DisplayPort (Female) RECEIVER Console Connection: ; Video Output: (1) DisplayPort (Female); Serial Control Port: (1) DB9 male; Link Port: (1) SFP Cage; USB: (4) USB Type-A (Female); Audio: (1) Mic In; (1) Speaker Out
Housing Material
Metal
Max. Resolution
3840 x 2160
Mean Time Between Failures
Transmitter: 137,540 hrs; Receiver: 165,620 hrs
LED Indicators
Power: Red LED; Link: Green LED
Operating Temperature
32 to 122°F
DDC Support
DDC, DDC2, DDC2B
Storage Temperature
-4 to 140°F
Maximum Operating Distance
32808.40 ft
Number of USB Ports
5
USB
Yes
Number of Local Users Supported
1
Device Type
KVM Extender
Environmentally Friendly
Yes
Mount Type
Rack-mountable
Package Contents
1 x Transmitter, 1 x Receiver, 2 x 5V, 2A Power Supplies (includes US, EU, UK plug types), 1 x DisplayPort Cable, M/M 1.2m (4 ft.), 1 x USB Type A to B Cable, M/M 1.8m (6 ft.), 1 x 3.5mm Dual Audio / Mic Cable, M/M 1.8m (6 ft.), 2 x Deskmounting brackets (with screws)
DisplayPort
Yes
Microphone
Yes
Headphone
Yes
Connectivity Technology
Wired
Number of Computers Supported
1
Graphic Mode
4K
Input Voltage
5 V DC
