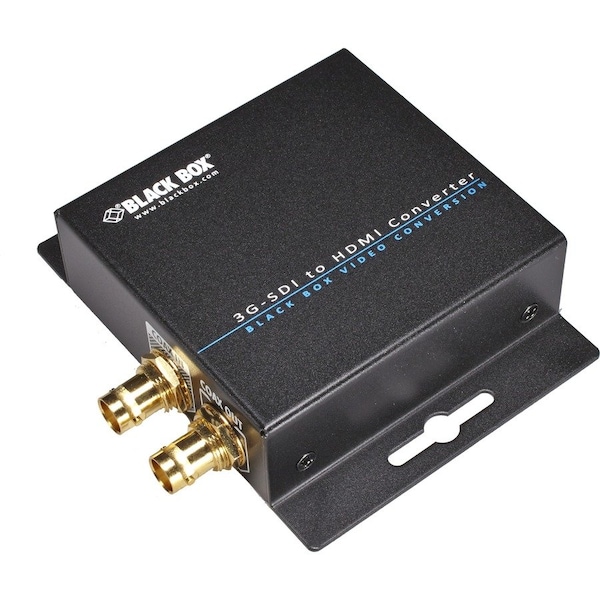

Black Box SDI to HDMI Converter, SDI to HDMI
Mfr # VSC-SDI-HDMI
Zoro # G2412756
product price:Â $335.99
/ea
Free Shipping & Returns
Key Features
Standards
CE Approval
Voltage
Input: 100 to 240V AC; Output: 5V AC
SDI Signaling Resolutions Supported
SMTPE 424M: 3G-SDI 1080p at 50/59.94/60 Hz (4:2:2); SMPTE 292M, 296M: HD-SDI 720p at 50/59.94/60 Hz, 1080i at 50/59.94/60 Hz, 1080p at 23.98/24/25/29.97/30 Hz; SMPTE 259M: SD-SDI NTSC 525 at 59.94 Hz, PAL 625 at 50 Hz
Dimensions
1.2 in x 3.1 in x 3.3 in
Power Consumption
3 W
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- VSC-SDI-HDMI
- Zoro #
- G2412756
- UPC #
- 822088062400
- Country of Origin
- Unknown
Dimensions
- Dimensions
- 1.2 in x 3.1 in x 3.3 in
Details
- Standards
- CE Approval
- Voltage
- Input: 100 to 240V AC; Output: 5V AC
- SDI Signaling Resolutions Supported
- SMTPE 424M: 3G-SDI 1080p at 50/59.94/60 Hz (4:2:2); SMPTE 292M, 296M: HD-SDI 720p at 50/59.94/60 Hz, 1080i at 50/59.94/60 Hz, 1080p at 23.98/24/25/29.97/30 Hz; SMPTE 259M: SD-SDI NTSC 525 at 59.94 Hz, PAL 625 at 50 Hz
- Power Consumption
- 3 W
- SDI Speeds Supported
- 270 Mbps, 1.4835 Gbps, 1.485 Gbps, 2.967 Gbps, 2.97 Gbps
- Frequency
- 50/60 Hz
- SDI Standards Supported
- 3G-SDI, HD-SDI, SD-SDI
- Amperage
- Input: 0.8 A; Output: 4 A
- Item
- 3G-SDI/HD-SDI to HDMI Converter
- Indicators
- (2) LEDs: (1) Power, (1) Activity
- User Controls
- (2) External DIP switches for audio formatting and configuration
- Connector Type
- SDI Input: (1) BNC (75-ohm); Local loopout: (1) BNC (75-ohm); HDMI Output: (1) HDMI F
