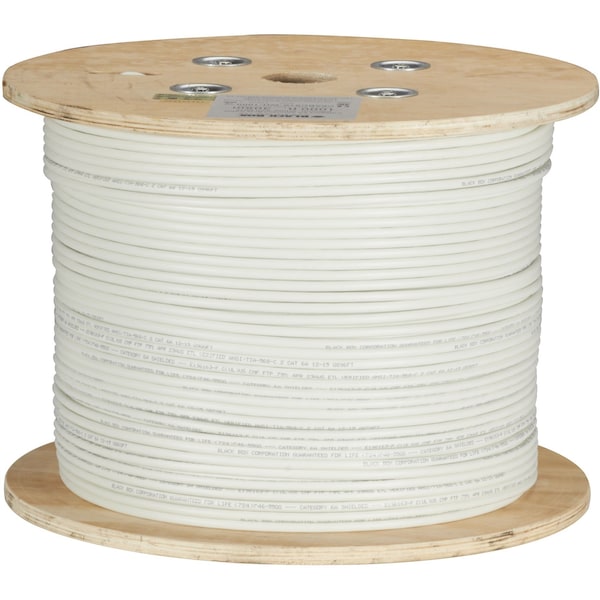

Cat6A Shld Bulk Cable F/Utp 1000 Pvc Wh
Mfr # C6ABC50S-WH-1000
Zoro # G0821881
product price:Â $634.99
/ea
Free Shipping & Returns
Key Features
Conductor Size
23 AWG
Standards
IEEE 802.an; TIA 568-C.2; UL
Solid / Stranded
Solid
Jacket Material
PVC
Outside Dia.
0.283 in
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- C6ABC50S-WH-1000
- Zoro #
- G0821881
- UPC #
- 822088129738
- Country of Origin
- Unknown
Dimensions
- Conductor Size
- 23 AWG
- Outside Dia.
- 0.283 in
Details
- Item
- Ethernet Bulk Cable
- Standards
- IEEE 802.an; TIA 568-C.2; UL
- Solid / Stranded
- Solid
- Jacket Material
- PVC
- Conductor Material
- Copper
- ACRF
- 27.8 dB at 100 MHz; 19.8 dB at 250 MHz; 18.3 dB at 300 MHz; 13.8 dB at 500 MHz; 11.5 dB at 650 MHz (previously referred to as equal level far end crosstalk (ELFEXT)
- PS-ACRF
- 24.8 dB at 100 MHz; 16.8 dB at 250 MHz; 15.3 dB at 300 MHz; 10.8 dB at 500 MHz; 8.5 dB at 650 MHz
- Construction
- Internal separator, FEP insulation, polyester tape, drain wire, aluminum/Mylar tape
- PS-NEXT
- 42.3 dB at 100 MHz; 36.3 dB at 250 MHz; 35.1 dB at 300 MHz; 31.8 dB at 500 MHz; 30.1 dB at 650 MHz
- Insulation Material
- HDPE
- Return Loss
- 21.1 at 100 MHz; 16.5 at 500 MHz; 15.7 at 650 MHz
- Insertion Loss (Maximum)
- 19.1 at 100 MHz; 31.1 at 250 MHz; 34.3 at 300 MHz; 45.3 at 500 MHz; 52.3 at 650 MHz
- NEXT
- 44.3 dB at 100 MHz; 38.3 dB at 250 MHz; 37.1 dB at 300 MHz; 33.8 dB at 500 MHz; 32.1 dB at 650 MHz
