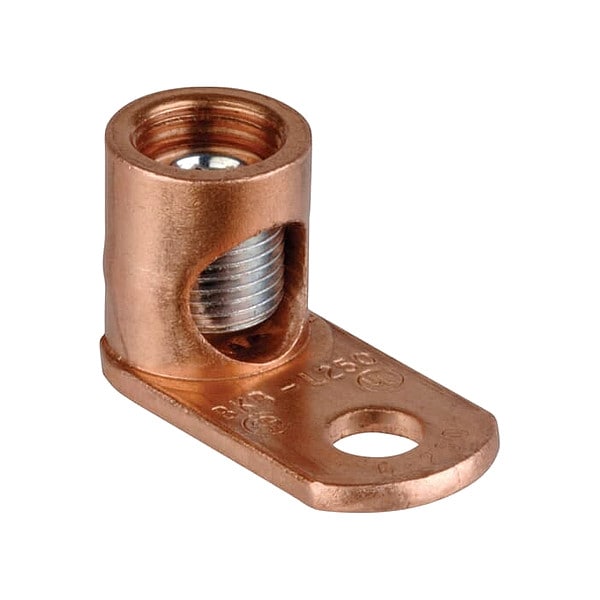

Mechanical Lug, 250 kcmil Max, 1 Conductor, 1 Hole, 13/32 in Stud, Copper
Mfr # L250
Zoro # G2831631
CAD Available
product price: $13.19
/eaKey Features
CAD Drawing
No. of Conductors
1
Min. Conductor Size
6 AWG Stranded
Max. Conductor Size
250 kcmil Stranded
Number of Holes
1
Stud Size
13/32 in
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
L250
Zoro #
G2831631
UPC #
783786130047
Country of Origin
Mexico
Dimensions
Min. Conductor Size
6 AWG Stranded
Max. Conductor Size
250 kcmil Stranded
Stud Size
13/32 in
Length
1.95 in
Width
0.94 in
Length (Straight Wireway)
1.95 in
Tongue Thickness
0.13 in
Tongue Length
1.09 in
For Stranded Copper Wire Size - Minimum
6 AWG
Overall Depth
1 1/16 in
For Stud Size
13/32 in
Hole Diameter
0.41 in
Tongue Width
0.94 in
Overall Length
1.95 in
For Stranded Copper Wire Size - Maximum
250 kcmil
Overall Width
0.94 in
For Minimum Wire Size
6 AWG
For Maximum Wire Size
250 kcmil
Description
Mechanical Connector, For Conductor Material Copper, For Stranded Copper Wire Size - Minimum 6 AWG, For Stranded Copper Wire Size - Maximum 250 kcmil, For Stud Size 13/32 in, Head Style Hex, Number of Holes 1, Hole Diameter 0.41 in, Hole Spacing Not Applicable, Body Material Copper, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 1,000 V, Number of Conductors 1, Number of Terminations 1, Tongue Length 1.09 in, Tongue Width 0.94 in, Tongue Thickness 0.13 in, Connector Type Compact
