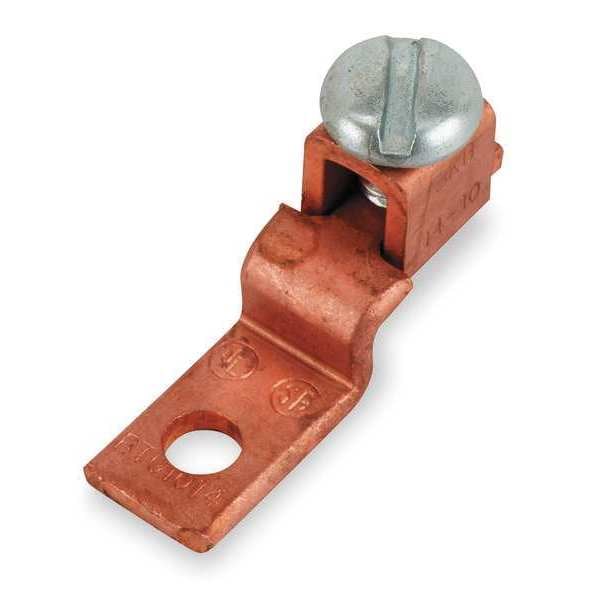

Mechanical Lug, 500 kcmil Max, 1 Conductor, 1 Hole, 13/32 in Stud, Copper
Mfr # BTC5011
Zoro # G2074642
product price:Â $56.85
/eaKey Features
Connector Type
Offset Tang
For Conductor Material
Copper
For Minimum Wire Size
1/0 AWG
For Maximum Wire Size
500 kcmil
Number of Conductors
1
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
MFR #
BTC5011
Zoro #
G2074642
UPC #
662381980922
Country of Origin
Multiple
Dimensions
For Minimum Wire Size
1/0 AWG
For Maximum Wire Size
500 kcmil
For Stud Size
13/32 in
Hole Diameter
0.41 in
Tongue Width
1.5 in
Length
4.25 in
Stud Size
13/32 in
Max. Conductor Size
500 kcmil Stranded
Width
1.5 in
Min. Conductor Size
1/0 AWG Stranded
Length (Straight Wireway)
4.25 in
Overall Length
4.25 in
Overall Depth
2 11/16 in
For Stranded Copper Wire Size - Maximum
500 kcmil
Tongue Offset Height
0.5 in
Tongue Length
2 in
Tongue Thickness
0.19 in
For Stranded Copper Wire Size - Minimum
1/0 AWG
Overall Width
1.5 in
Description
Mechanical Connector, For Conductor Material Copper, For Stranded Copper Wire Size - Minimum 1/0 AWG, For Stranded Copper Wire Size - Maximum 500 kcmil, For Stud Size 13/32 in, Head Style Hex, Number of Holes 1, Hole Diameter 0.41 in, Hole Spacing Not Applicable, Body Material Copper, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 1,000 V, Number of Conductors 1, Number of Terminations 1, Tongue Length 2 in, Tongue Width 1.5 in, Tongue Thickness 0.19 in, Tongue Offset Height 0.5 in
