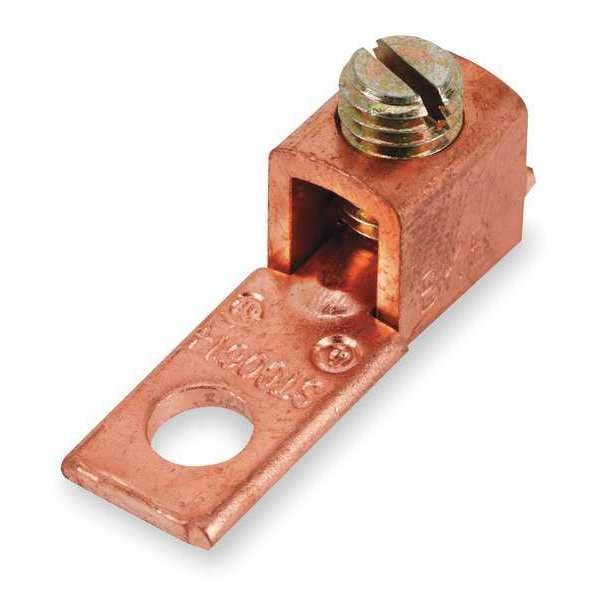

Mechanical Lug, 6 AWG Max, 1 Conductor, 1 Hole, 13/64 in Stud, Copper
Mfr # STC0614
Zoro # G1924282
product price:Â
$
14.49
/ea
Key Features
Connector Type
Straight Tang
For Conductor Material
Copper
For Minimum Wire Size
14 AWG
For Maximum Wire Size
6 AWG
Number of Conductors
1
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- STC0614
- Zoro #
- G1924282
- UPC #
- 783786134212
- Country of Origin
- Multiple
- Item
- Mechanical Lug
- Connector Type
- Straight Tang
- For Conductor Material
- Copper
- Number of Conductors
- 1
- Number of Terminations
- 1
- Number of Holes
- 1
- Body Material
- Copper
- Maximum Voltage
- 1,000 V
- Maximum Operating Temperature
- 194 Degrees F
- Standards
- UL Listed, UL486A/B
- Screw Material
- Steel
- Material
- Electrolytic Copper
- Head Style
- Slotted
- No. of Conductors
- 1
- No. of Holes
- 1
- Special Features
- Notched V-Bottom Collar, Uniquely Designed Pressure Bar
- Screw Finish
- Zinc Plated
- Type
- Copper Connectors
- Standard
- UL E9809
- Features
- Uniquely designed pressure bar and notched v-bottom collar provide vise-like grip between conductor and terminal.; Made of electrolytic seamless copper. Screws are zinc-plated steel.
- Connection Orientation
- Straight Tang
- Contact Finish
- Unplated
Description
Mechanical Connector, For Conductor Material Copper, For Stranded Copper Wire Size - Minimum 14 AWG, For Stranded Copper Wire Size - Maximum 6 AWG, For Stud Size 13/64 in, Head Style Slotted, Number of Holes 1, Hole Diameter 0.2 in, Hole Spacing Not Applicable, Body Material Copper, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 1,000 V, Number of Conductors 1, Number of Terminations 1, Tongue Length 0.51 in, Tongue Width 0.38 in, Tongue Thickness 0.08 in
