  9. Vacuum Pump, 1/2 hp, Brushless DC
No Product Image Available

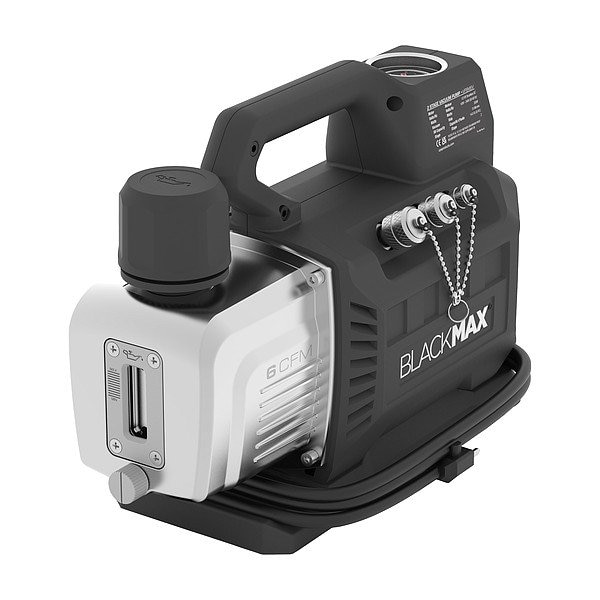

Vacuum Pump, 1/2 hp, Brushless DC

  • Mfr # VPBM6V

  • Zoro # G314884645

product price: $684.99
/ea
Free Shipping & Returns

Key Features

Voltage
100V AC; 240V AC
Weight
19.1 lb
Displacement
6 cfm
Overall Length
13.8 in
Oil Capacity
14 oz
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
VPBM6V
Zoro #
G314884645
UPC #
-
Country of Origin
China

Dimensions

Overall Length
13.8 in
Overall Height
10 in
Overall Width
5.8 in
Cord Length
10 ft
Inlet 1 Port Connection Size
1/2 in
Inlet 2 Port Connection Size
3/8 in
Inlet 3 Port Connection Size
1/4 in

Details

Item
Pump
Voltage
100V AC; 240V AC
Weight
19.1 lb
Displacement
6 cfm
Oil Capacity
14 oz
Motor Type
Brushless DC
Inlet 3 Port Connection Type
SAE
Inlet 2 Port Connection Thread Direction
Right-Hand
Inlet 3 Port Connection Thread Direction
Right-Hand
Includes Oil Mist Filter
Oil Mist Filter Included
Operating Temperature - Maximum
130 Degrees F
For Refrigerant Type
Includes Hoist Clip
Hoist Clip Not Included
Drain Port Connection Thread Direction
Right-Hand
Inlet 1 Port Connection Type
SAE
Power Source
Plug-In
Product Type
Vacuum Pump
Includes Isolation Valve
Isolation Valve Included
Drive Type
Direct Drive
Frequency
60/50 Hz
Warranty
2 yr
Includes Sightglass
Sightglass Included
Series
BlackMax(R)
A2L Compatibility
A2L Compatible
Mobility
Handle
Includes Vacuum Gauge
Gauge Included
Number of Stages
Two-Stage
Horsepower
1/2 hp
Reservoir Port Connection Thread Direction
Right-Hand
Standards
CE, UKCA (Tested to UL 12.12.01 Methods For Ignition Proof Requirements Per UL1963 Supplement SB)
Inlet 1 Port Connection Thread Direction
Right-Hand
Operating Temperature - Minimum
5 Degrees F
Inlet 2 Port Connection Type
SAE
Ultimate Vacuum
15 micron
Calibration Certificate Type
Not Certified
Number of Inlet Ports
3
Inlet 2 Port Connection Gender
Male
Inlet 1 Port Connection Gender
Male
Motor Speed
3,200 RPM
Includes Gas Ballast
Gas Ballast Included
Inlet 3 Port Connection Gender
Male

Description

Pump, 6 cfm Displacement, Voltage 100V AC; 240V AC, Overall Length 13.8 in, Overall Height 10 in, Overall Width 5.8 in, Weight 19.1 lb, Oil Capacity 14 oz
