Shop BLANCETT

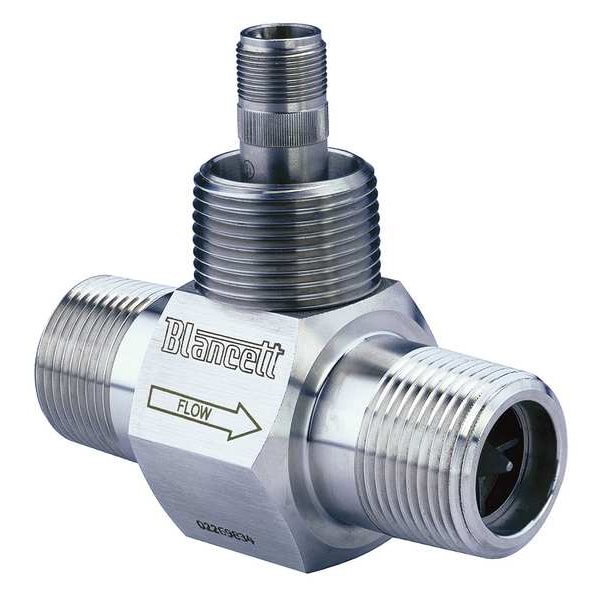

Flowmeter, Turbine, 3GPM, 1 In MNPT

  • Mfr # B110-375

  • Zoro # G4044022

product price:  $728.99
/ea
Free Shipping & Returns

Key Features

Housing Material
Stainless Steel
Type
Turbine
For Pipe Size
3/8 in
Connection Size
1 in
Flow Material
Low Viscosity Fluids, Water
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
B110-375
Zoro #
G4044022
UPC #
-
Country of Origin
United States

Dimensions

For Pipe Size
3/8 in
Connection Size
1 in
Connection Size (In.)
1 MNPT
Manufacturers Warranty Length
1 yr
Length (In.)
4"
Width
1 7/8 in
Height
3 in
Length
4 in
Width (In.)
1-7/8"
Height (In.)
3
Overall Width
1.9 in
Overall Length
4 in
Overall Height
3 in
Manufacturer Warranty Length
1 yr
Wire Rope Length
4 in

Details

Item
Mechanical Flowmeter
Housing Material
Stainless Steel
Type
Turbine
Flow Material
Low Viscosity Fluids, Water
Connection Type
NPT
Max. Pressure
5,000 psi
Wetted Materials
316 Stainless Steel, Tungsten Carbide
Max. Viscosity
150 SUS
Flow Range
0.6 to 3 gpm
Fitting
1/2 in MNPT
Fluid Temp. Range
-150 Degrees to 350 Degrees F
Pressure Drop - 100% Flow (PSI)
20.0 psi
Max. Temp. (F)
350
Flow Range (LPM)
2.3 to 11.4
Pulses per Gallon
18,000 pulses/gal
Flow Range (GPM)
.6 to 3
Temp.
350 Degrees F
Chamber Material
316 Stainless Steel
Output
Frequency
Accuracy (%)
1% of reading
GPM Max.
3 gpm
Shaft Material
Tungsten Carbide
Agency Compliance
CSA, MET LABS
Max. Pressure (PSI)
5000
Max. Viscosity (SSU)
400
Standards
CSA C22.2 No. 30-M1986, Met Labs File No. E11286, UL1203
Output Type
Standard Frequency Pulse
Product Type
Turbine Flow Meter
Accuracy
+/-1%
Unit Of Measure
Gallons
Viscosity - Maximum
150 SUS
Compatible Flow Material
Oils, Water
Rotor Material
Stainless Steel
Pulse Rate
18,000 pulses/gal
Media Temperature - Minimum
-150 Degrees F
Includes Flow Rate Adjustment Knob
No
Flowmeter Type
Turbine
Flow Rate - Minimum
0.6 gpm
Flow Rate - Maximum
3 gpm
Wetted Material
316 Stainless Steel, Tungsten Carbide
Operating Pressure - Maximum
5,000 psi
Includes Pressure Gauge
No
Media Temperature - Maximum
425 Degrees F
Includes Totalizer
No
Mounting Orientation
Universal

Description

Mechanical Flowmeter, Product Type Turbine Flow Meter, Flowmeter Type Turbine, Accuracy +/-1 Percent, Connection Size 1 in, Connection Type NPT, Compatible Flow Material Oils, Water, Media Temperature - Maximum 425 Degrees F, Media Temperature - Minimum -150 Degrees F, Viscosity - Maximum 150 SUS, Voltage - Maximum Not Applicable, Housing Material Stainless Steel, Rotor Material Stainless Steel, O-Ring Material Not Applicable, Seal Material Not Applicable, Shaft Material Tungsten Carbide

Restrictions

This is a restricted item in the USA. It cannot be used for potable water applications.
