  11. Dul Whl Cstr, Swl, Thm Ply, 3", 220 lb., Pln
Blickle Dul Whl Cstr, Swl, Thm Ply, 3", 220 lb., Pln LMDA-PATH 75G - main

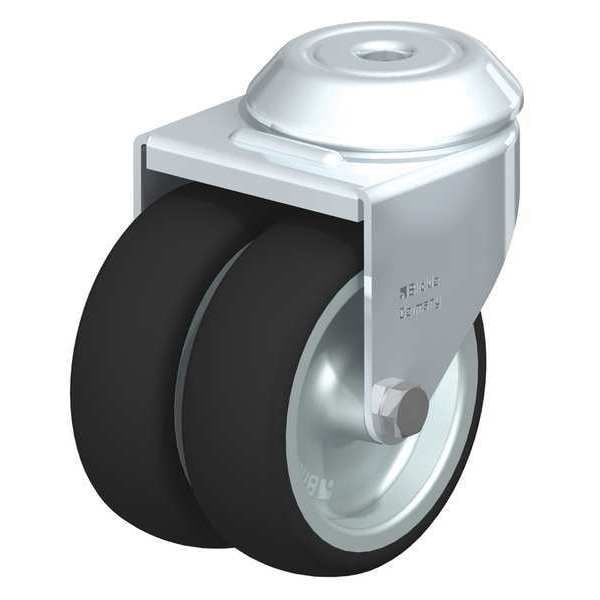

Dul Whl Cstr, Swl, Thm Ply, 3", 220 lb., Pln

  • Mfr # LMDA-PATH 75G

  • Zoro # G9657168

product price: $29.69
/ea

Key Features

Caster Sub-Type
Swivel
Caster Product Group
Swivel Caster
Load Rating
220 lb.
Wheel Dia.
75 mm
Wheel Width
2 x 25 mm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
LMDA-PATH 75G
Zoro #
G9657168
UPC #
-
Country of Origin
Germany

Dimensions

Wheel Dia.
75 mm
Wheel Width
2 x 25 mm
Mounting Bolt Dia.
M10
Overall Height
98 mm
Swivel Radius
71.5 mm

Details

Item
Swivel Plate Caster
Caster Sub-Type
Swivel
Caster Product Group
Swivel Caster
Load Rating
220 lb.
Non-Marking
Yes
Number of Wheels
2
Frame Finish
Zinc Plated
Caster Frame Material
Steel
Wheel Core Material
Nylon
Core Color
Gray
Application
Food Service, Food Processing, Drug Manufacturing, Retail, Industrial, Commercial, Automotive, Clean Room, Aerospace
Standards
RoHS, ICWM
Caster Raceway
Double Ball
Caster Wheel Bearings
Plain
Tread Color
Dark Gray
Replacement Wheel
Mfr. No. PATH 75/8G
System of Measurement
Metric
Caster Temp. Range
-25 Degrees To 70 Degrees C
Caster Mounting Type
Hollow Kingpin
Caster Load Rating Range
Light Duty
Caster Wheel/Tread Material
Thermoplastic Polyurethane
Tread
Standard
Caster Brake Included
No
Extended Lead
No
Caster Swivel Lock Type
No Lock Included
Load Capacity
100 kg
Caster Break Type
No Brake Included
Resistant To
Very High Chemical Resistance To Many Aggressive Substances
Includes Thread Guards
No
ESD Conductive
No
Series
LMDA Series
Swivel Raceway Type
Double Ball
Wheel/Tread Hardness
94 Shore A
Tread Shape
Standard

Description

Swivel
