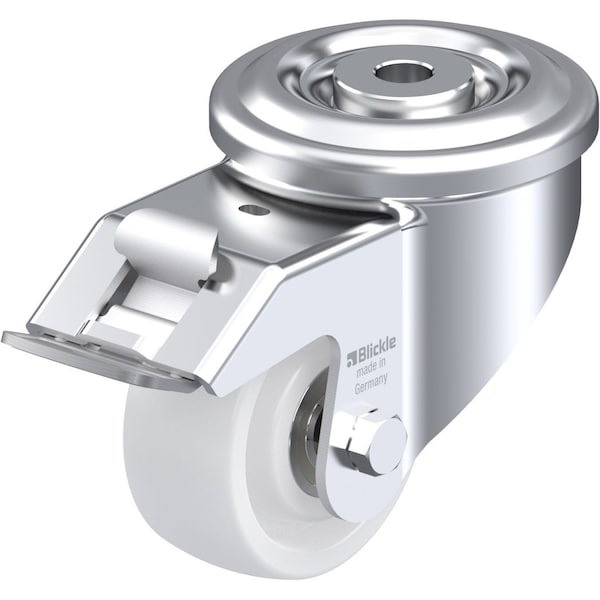

Kingpin Swivel Caster, Nylon, 3", Brake

Name: Kingpin Swivel Caster, Nylon, 3", Brake
Brand: Blickle
SKU: G9659198
Price: 69.19 USD
Availability: InStock

69.19

/ea

Caster Sub-Type

Swivel

Caster Product Group

Swivel Caster With Brake

Wheel Dia.

75 mm

Wheel Width

32 mm

Mounting Bolt Dia.

M12

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Get 10% off your order

Specifications

Item: Swivel Hollow Kingpin Caster With Brake
Caster Sub-Type: Swivel
Caster Product Group: Swivel Caster With Brake
Non-Marking: Yes
Number of Wheels: 1
Frame Finish: Zinc Plated
Caster Frame Material: Steel
Wheel Core Material: Nylon
Core Color: White
Application: Food Service, Food Processing, Drug Manufacturing, Retail, Industrial, Commercial, Automotive, Clean Room, Aerospace
Standards: RoHS, ICWM
Includes: Stop-Fix Total-Lock Brake
Caster Wheel/Tread Material: Heavy Duty Nylon
Caster Swivel Lock Type: Total-Lock
Extended Lead: No
Caster Load Rating Range: Medium Duty
Replacement Wheel: Mfr. No. SPO 75/15K
Caster Wheel Bearings: Precision Ball
Caster Brake Included: Yes
Caster Raceway: Double Ball
Caster Temp. Range: -25 Degrees To 80 Degrees C
System of Measurement: Metric
Tread Shape: Standard
Resistant To: High Chemical Resistance To Many Aggressive Substances
Tread Color: White
Caster Break Type: Stop Fix Brake (Total Lock)
Load Capacity: 300 kg
Includes Thread Guards: No
Swivel Raceway Type: Double Ball
Wheel/Tread Hardness: 70 Shore D
Series: LKR Series
ESD Conductive: No
Caster Mounting Type: Hollow Kingpin
Tread: Standard

Swivel With Brake
