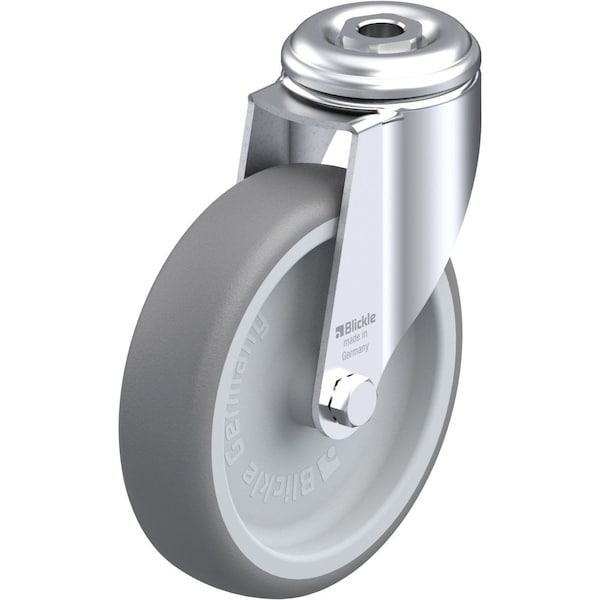

Blickle

Kingpin Swivel Caster, TPR, 5", 265 lb.


product price: $15.69
/ea

Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Caster Sub-Type Swivel
  • Caster Product Group Swivel Caster
  • Wheel Dia. 5 in
  • Wheel Width 1-1/4 in
  • Mounting Bolt Dia. 1/2 in
See all product information

Product Information

Dimensions

Wheel Dia. 5 in
Wheel Width 1-1/4 in
Mounting Bolt Dia. 1/2 in
Overall Height 6-1/4 in
Swivel Radius 4-1/16 in

Details

Item Swivel Hollow Kingpin Caster
Caster Sub-Type Swivel
Caster Product Group Swivel Caster
Non-Marking Yes
Number of Wheels 1
Frame Finish Zinc Plated
Caster Frame Material Steel
Wheel Core Material Polypropylene
Core Color Gray
Application Food Service, Food Processing, Drug Manufacturing, Retail, Industrial, Commercial, Automotive, Clean Room, Aerospace
Standards RoHS, ICWM
Caster Load Rating Range Medium Duty
Caster Raceway Double Ball
Caster Wheel/Tread Material Thermoplastic Rubber
Replacement Wheel Mfr. No. TPA 126/12G
Caster Wheel Bearings Plain
Extended Lead No
Caster Swivel Lock Type No Lock Included
Caster Temp. Range -4 Degrees To 140 Degrees F
Caster Brake Included No
System of Measurement Inch
Load Capacity 265 lb
Series LKRA Series
Wheel/Tread Hardness 85 Shore A
Tread Shape Standard
Includes Thread Guards No
Tread Standard
Swivel Raceway Type Double Ball
Caster Break Type No Brake Included
Caster Mounting Type Hollow Kingpin
ESD Conductive No
Resistant To Very High Chemical Resistance To Many Aggressive Substances
Tread Color Gray

Description

Swivel
