Blickle

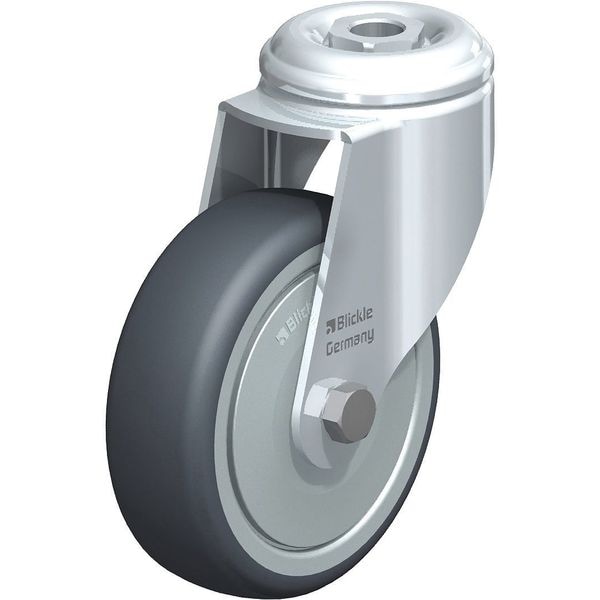

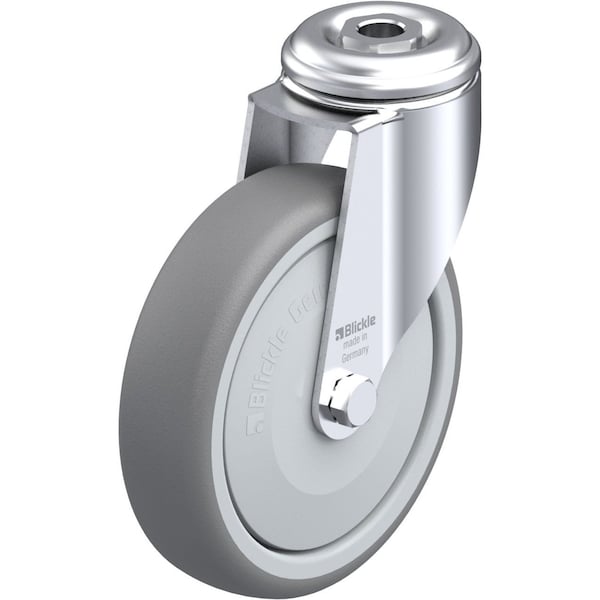

Kingpin Swivel Caster, TPR, 5", 265 lb.


product price: $22.39
/ea

Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Caster Sub-Type Swivel
  • Caster Product Group Swivel Caster
  • Wheel Dia. 5 in
  • Wheel Width 1-1/4 in
  • Mounting Bolt Dia. 1/2 in
See all product information

Product Information

Dimensions

Wheel Dia. 5 in
Wheel Width 1-1/4 in
Mounting Bolt Dia. 1/2 in
Swivel Radius 4-1/16 in
Overall Height 6-1/4 in

Details

Item Swivel Hollow Kingpin Caster
Caster Sub-Type Swivel
Caster Product Group Swivel Caster
Non-Marking Yes
Number of Wheels 1
Frame Finish Zinc Plated
Caster Frame Material Steel
Wheel Core Material Polypropylene
Core Color Gray
Application Food Service, Food Processing, Drug Manufacturing, Retail, Industrial, Commercial, Automotive, Clean Room, Aerospace
Standards RoHS, ICWM
Replacement Wheel Mfr. No. TPA 126/8K-FK
Extended Lead No
Caster Raceway Double Ball
Caster Load Rating Range Medium Duty
Caster Brake Included No
Caster Wheel/Tread Material Thermoplastic Rubber
Caster Swivel Lock Type No Lock Included
Caster Wheel Bearings Precision Ball
Caster Temp. Range -4 Degrees To 140 Degrees F
System of Measurement Inch
Load Capacity 265 lb
Wheel/Tread Hardness 85 Shore A
Series LKRA Series
Tread Color Gray
Caster Break Type No Brake Included
Swivel Raceway Type Double Ball
Resistant To Very High Chemical Resistance To Many Aggressive Substances
Caster Mounting Type Hollow Kingpin
Includes Thread Guards Yes
ESD Conductive No
Tread Shape Standard
Tread Standard

Description

Swivel
