  11. Rigd Plte Cstr, TPR Rubbr, 3-1/8", 165 lb.

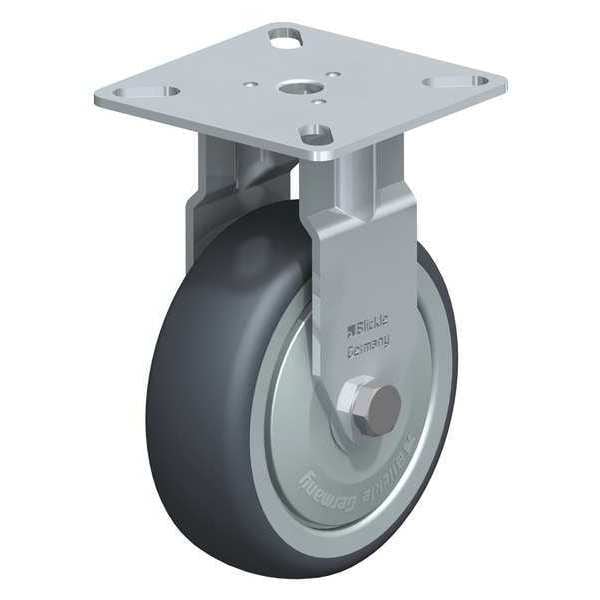

Blickle Rigd Plte Cstr, TPR Rubbr, 3-1/8", 165 lb. BPA-TPA 75KF - main

Rigd Plte Cstr, TPR Rubbr, 3-1/8", 165 lb.

  • Mfr # BPA-TPA 75KF

  • Zoro # G9661340

product price: $14.69
/ea

Key Features

Caster Sub-Type
Rigid
System of Measurement
Metric
Wheel/Tread Material
Thermoplastic Rubber
Caster Brake Type
No Brake
Wheel Dia.
3 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
BPA-TPA 75KF
Zoro #
G9661340
UPC #
-
Country of Origin
Germany

Dimensions

Wheel Dia.
3 in
Wheel Width
1 in
Mounting Height
3 15/16 in
Mounting Plate Size
60 mm x 60 mm
Mounting Plate Thickness
2 mm
Mounting Bolt Dia.
7/32 in
Overall Height
100 mm
Bolt Hole Spacing - Length
1.5 in
For Axle Dia.
6 mm
Mounting Plate Length
60 mm
Inside Slot Spacing - Width
38 mm
Outside Slot Spacing - Width
38 mm
Mounting Plate Width
60 mm
Overall Wheel Width
1 in
Outside Slot Spacing - Length
48 mm
Inside Slot Spacing - Length
38 mm

Details

Item
Rigid Caster
Caster Sub-Type
Rigid
System of Measurement
Metric
Wheel/Tread Material
Thermoplastic Rubber
Caster Brake Type
No Brake
Caster Mounting Type
Plate
Wheel Bearing Type
Precision Ball
Wheel Hardness Rating
85 Shore A
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Steel
Core Color
Gray
Non-Marking
Yes
Number of Wheels
1
Outside Bolt Hole Spacing
48 mm x 48 mm
Inside Bolt Hole Spacing
38 mm x 38 mm
Extended Lead
No
Application
Food Service, Food Processing, Drug Manufacturing, Retail, Industrial, Commercial, Automotive, Clean Room, Aerospace
Tread
Standard
Replacement Wheel
Mfr. No. TPA 75/6K-FK
Caster Brake Included
No
Frame Finish
Zinc Plated
Standards
RoHS, ICWM, NSF
Tread Color
Gray
Load Capacity
75 kg
Series
BPA Series
Includes Thread Guards
Yes
Resistant To
Very High Chemical Resistance To Many Aggressive Substances
Wheel Core Material
Polypropylene
ESD Conductive
No
Load Rating Range
Light-Medium Duty
Wheel Bearing Material
Steel
Load Capacity - Maximum
420 lb
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Mounting Hole Type
Hole
Wheel Core Type
Solid
Caster Features
Corrosion-Resistant, Debris-Resistant, Maintenance Free, Quiet-Roll
Mounting Plate Shape
Rectangle
Operating Temperature Range
-20 Degrees To 60 Degrees C

Description

Rigid, Plate Caster, Wheel Dia. 3 in, Wheel Width 1 in, Wheel/Tread Material Rubber, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
