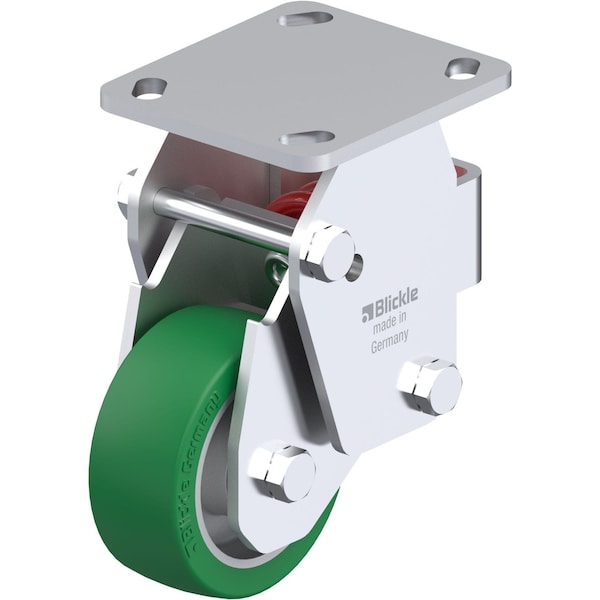

Blickle Rigid Plate Caster, PU, 4", 660 lb. BHF-ALST 100K-14 - main

Rigid Plate Caster, PU, 4", 660 lb.

  • Mfr # BHF-ALST 100K-14

  • Zoro # G0895708

product price:  $204.99
/ea
Free Shipping & Returns

Key Features

Extended Lead
No
Application
Food Service, Food Processing, Drug Manufacturing, Retail, Industrial, Commercial, Automotive, Clean Room, Aerospace
Overall Height
6-7/8 in
Frame Finish
Zinc Plated
Mounting Bolt Dia.
3/8 in
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
BHF-ALST 100K-14
Zoro #
G0895708
UPC #
-
Country of Origin
Germany

Dimensions

Overall Height
6-7/8 in
Mounting Bolt Dia.
3/8 in
Wheel Width
1-9/16 in
Wheel Dia.
4 in
Mounting Plate Size
4 in x 4-1/2 in
Mounting Plate Thickness
0.217 in

Details

Item
Rigid Caster
Extended Lead
No
Application
Food Service, Food Processing, Drug Manufacturing, Retail, Industrial, Commercial, Automotive, Clean Room, Aerospace
Frame Finish
Zinc Plated
Inside Bolt Hole Spacing
3 in x 3 in
Caster Sub-Type
Rigid
Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Caster Frame Material
Steel
Caster Brake Included
No
Replacement Wheel
Mfr. No. ALST 100/15K
Non-Marking
Yes
Tread
Standard
Load Capacity
260 lb
Caster Brake Type
No Brake Included
Tread Color
Green
Core Color
Silver
Standards
RoHS, ICWM
Caster Mounting Type
Plate
Number of Wheels
1
Series
BHF Series
ESD Conductive
No
Number of Mounting Holes
4
Tread Shape
Standard
Wheel Core Material
Aluminum
Resistant To
High Chemical Resistance To Many Aggressive Substances
Max. Spring Deflection
3/4 in
Includes Thread Guards
No
Load Rating Range
Medium Duty
System of Measurement
Inch
Wheel Bearing Type
Precision Ball
Wheel/Tread Material
Softhane Polyurethane
Wheel Hardness Rating
75 Shore A
Maximum Compression Force
440 lb
Operating Temperature Range
-15 Degrees To 160 Degrees F

Description

Rigid
