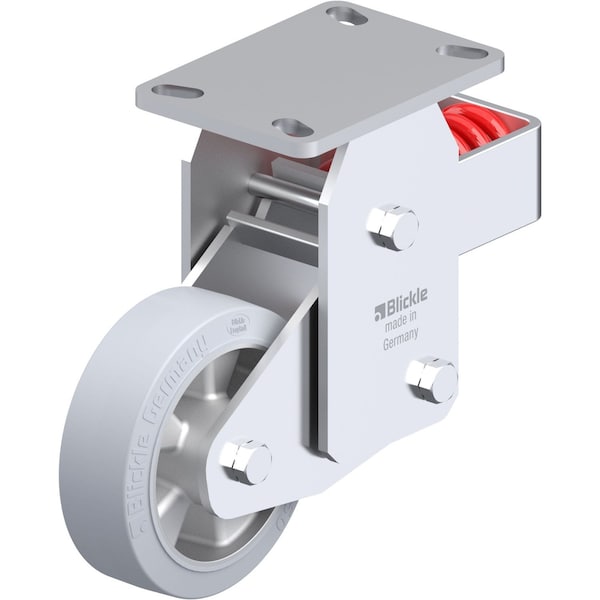

Blickle Rigid Plate Caster, Solid Rbbr, 6", 880 lb. BHF-ALEV 150K-16-SG - main

Rigid Plate Caster, Solid Rbbr, 6", 880 lb.

  • Mfr # BHF-ALEV 150K-16-SG

  • Zoro # G0895111

product price:  $265.99
/ea
Free Shipping & Returns

Key Features

Number of Wheels
1
Replacement Wheel
Mfr. No. ALEV 150/20K-SG
Caster Brake Included
No
Tread Color
Gray
Frame Finish
Zinc Plated
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
BHF-ALEV 150K-16-SG
Zoro #
G0895111
UPC #
-
Country of Origin
Germany

Dimensions

Mounting Bolt Dia.
1/2 in
Overall Height
9-1/2 in
Wheel Width
2 in
Wheel Dia.
6 in
Mounting Plate Size
4-1/2 in x 6-1/4 in
Mounting Plate Thickness
0.315 in

Details

Item
Rigid Caster
Number of Wheels
1
Replacement Wheel
Mfr. No. ALEV 150/20K-SG
Caster Brake Included
No
Tread Color
Gray
Frame Finish
Zinc Plated
Extended Lead
No
Non-Marking
Yes
Caster Brake Type
No Brake Included
Standards
RoHS, ICWM
Caster Frame Material
Steel
Load Capacity
500 lb
Application
Retail, Industrial, Commercial
Outside Bolt Hole Spacing
3-3/8 in x 5-1/4 in
Caster Mounting Type
Plate
Tread
Standard
Core Color
Silver
Inside Bolt Hole Spacing
2-7/16 in x 4-15/16 in
Caster Sub-Type
Rigid
Max. Spring Deflection
1 in
Tread Shape
Standard
Wheel Core Material
Aluminum
Load Rating Range
Medium Duty
Number of Mounting Holes
4
Includes Thread Guards
No
Series
BHF Series
ESD Conductive
No
System of Measurement
Inch
Resistant To
High Chemical Resistance To Many Aggressive Substances, Except Oils
Wheel/Tread Material
EasyRoll Elastic Solid Rubber
Wheel Bearing Type
Precision Ball
Wheel Hardness Rating
65 Shore A
Operating Temperature Range
-15 Degrees To 175 Degrees F
Maximum Compression Force
880 lb

Description

Rigid
