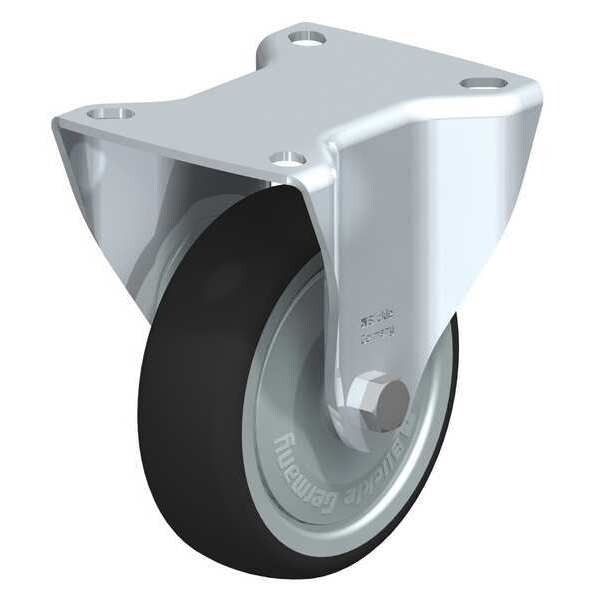

Blickle Rigid Plte Cstr, Polyurthane, 4", 330 lb. B-PATH 100KF - main

Rigid Plte Cstr, Polyurthane, 4", 330 lb.

  • Mfr # B-PATH 100KF

  • Zoro # G9661858

product price:  $20.65
/ea

Key Features

Caster Sub-Type
Rigid
Wheel/Tread Material
Thermoplastic Polyurethane
Caster Brake Type
No Brake Included
Wheel Width
32 mm
Caster Mounting Type
Plate
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
B-PATH 100KF
Zoro #
G9661858
UPC #
-
Country of Origin
Germany

Dimensions

Wheel Width
32 mm
Mounting Plate Size
85 mm x 100 mm
Mounting Plate Thickness
2.5 mm
Mounting Bolt Dia.
M8
Overall Height
125 mm
Wheel Dia.
100 mm

Details

Item
Rigid Caster
Caster Sub-Type
Rigid
Wheel/Tread Material
Thermoplastic Polyurethane
Caster Brake Type
No Brake Included
Caster Mounting Type
Plate
Number of Mounting Holes
4
Caster Frame Material
Steel
Core Color
Gray
Non-Marking
Yes
Number of Wheels
1
Outside Bolt Hole Spacing
60 mm x 80 mm
Inside Bolt Hole Spacing
60 mm x 80 mm
Application
Food Service, Food Processing, Drug Manufacturing, Retail, Industrial, Commercial, Automotive, Clean Room, Aerospace
Tread Color
Dark Gray
Caster Brake Included
No
Standards
RoHS, ICWM
Replacement Wheel
Mfr. No. PATH 100/10K-FK
Extended Lead
No
Load Capacity
150 kg
Frame Finish
Zinc Plated
Tread
Standard
Load Rating Range
Medium Duty
Includes Thread Guards
Yes
Resistant To
Very High Chemical Resistance To Many Aggressive Substances
System of Measurement
Metric
ESD Conductive
No
Series
B Series
Tread Shape
Standard
Wheel Core Material
Nylon
Wheel Bearing Type
Precision Ball
Wheel Hardness Rating
94 Shore A
Operating Temperature Range
-25 Degrees To 70 Degrees C

Description

Rigid
