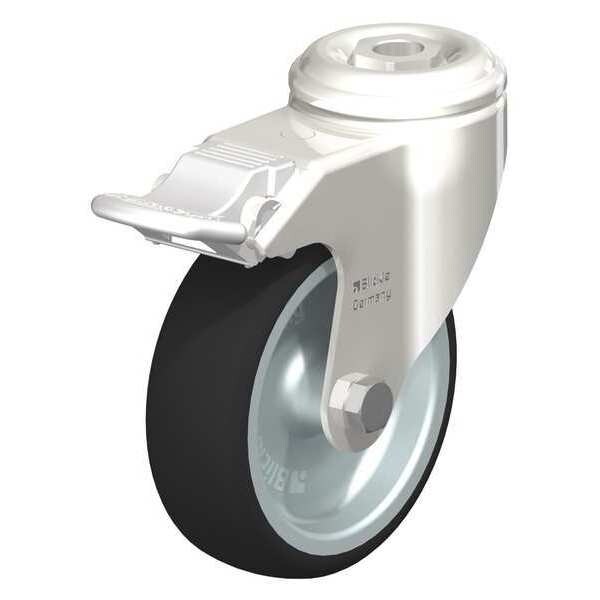

Blickle SS, Kngpn Swvl Cstr, Polyrthn, 4", Brk LKRXA-PATH 101G-FI - main

SS, Kngpn Swvl Cstr, Polyrthn, 4", Brk

  • Mfr # LKRXA-PATH 101G-FI

  • Zoro # G9658306

product price: $50.95
/ea

Key Features

Caster Sub-Type
Swivel
Caster Product Group
Swivel Caster With Brake
Wheel Dia.
100 mm
Wheel Width
32 mm
Mounting Bolt Dia.
M12
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
LKRXA-PATH 101G-FI
Zoro #
G9658306
UPC #
-
Country of Origin
Germany

Dimensions

Wheel Dia.
100 mm
Wheel Width
32 mm
Mounting Bolt Dia.
M12
Swivel Radius
90 mm
Overall Height
133 mm

Details

Item
Swivel Hollow Kingpin Caster With Brake
Caster Sub-Type
Swivel
Caster Product Group
Swivel Caster With Brake
Non-Marking
Yes
Number of Wheels
1
Frame Finish
Stainless Steel
Caster Frame Material
Stainless Steel
Wheel Core Material
Nylon
Core Color
Gray
Application
Food Service, Food Processing, Drug Manufacturing, Retail, Industrial, Commercial, Automotive, Clean Room, Aerospace
Standards
RoHS, ICWM
Includes
Stop-Fix Total-Lock Brake
Caster Swivel Lock Type
Total-Lock
Caster Temp. Range
-25 Degrees To 70 Degrees C
Replacement Wheel
Mfr. No. PATH 101/12G
Caster Wheel Bearings
Plain
Caster Brake Included
Yes
Extended Lead
No
Caster Load Rating Range
Medium Duty
Caster Wheel/Tread Material
Thermoplastic Polyurethane
Caster Raceway
Double Ball
System of Measurement
Metric
Tread Shape
Standard
Swivel Raceway Type
Double Ball
Includes Thread Guards
No
Tread
Standard
Caster Mounting Type
Hollow Kingpin
ESD Conductive
No
Resistant To
Very High Chemical Resistance To Many Aggressive Substances
Series
LKRXA Series
Tread Color
Dark Gray
Caster Break Type
Stop Fix Brake (Total Lock)
Load Capacity
120 kg
Wheel/Tread Hardness
94 Shore A

Description

Swivel With Brake
