  11. SS Kngpn Swvl Cstr, Urthn, 3", 165 lb. Brk

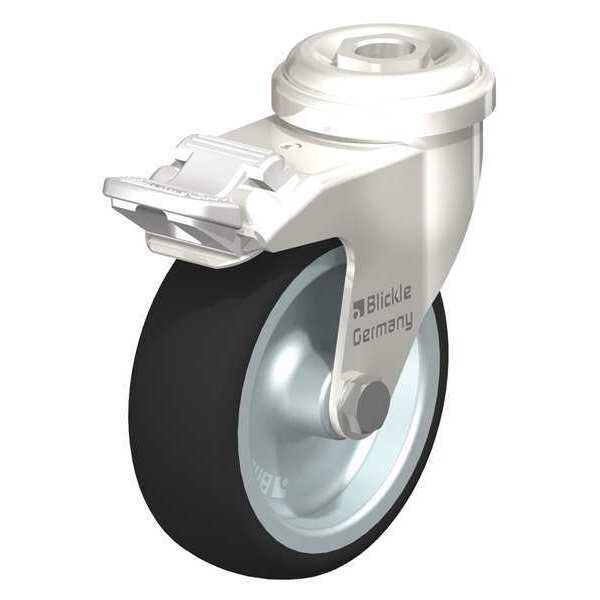

Blickle SS Kngpn Swvl Cstr, Urthn, 3", 165 lb. Brk LRXA-PATH 75G-FI - main

SS Kngpn Swvl Cstr, Urthn, 3", 165 lb. Brk

  • Mfr # LRXA-PATH 75G-FI

  • Zoro # G9657859

product price: $46.99
/ea

Key Features

Caster Sub-Type
Swivel
Caster Product Group
Swivel Caster With Brake
Wheel Dia.
75 mm
Wheel Width
25 mm
Mounting Bolt Dia.
M10
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
LRXA-PATH 75G-FI
Zoro #
G9657859
UPC #
-
Country of Origin
Germany

Dimensions

Wheel Dia.
75 mm
Wheel Width
25 mm
Mounting Bolt Dia.
M10
Overall Height
98 mm
Swivel Radius
66.5 mm

Details

Item
Swivel Hollow Kingpin Caster With Brake
Caster Sub-Type
Swivel
Caster Product Group
Swivel Caster With Brake
Non-Marking
Yes
Number of Wheels
1
Frame Finish
Stainless Steel
Caster Frame Material
Stainless Steel
Wheel Core Material
Nylon
Core Color
Gray
Application
Food Service, Food Processing, Drug Manufacturing, Retail, Industrial, Commercial, Automotive, Clean Room, Aerospace
Standards
RoHS, ICWM
Includes
Stop-Fix Total-Lock Brake
Caster Load Rating Range
Light Duty
Caster Swivel Lock Type
Total-Lock
Caster Wheel/Tread Material
Thermoplastic Polyurethane
Caster Brake Included
Yes
Caster Wheel Bearings
Plain
Extended Lead
No
Caster Temp. Range
-25 Degrees To 70 Degrees C
Replacement Wheel
Mfr. No. PATH 75/8G
Caster Raceway
Double Ball
System of Measurement
Metric
Caster Mounting Type
Hollow Kingpin
Tread Shape
Standard
Resistant To
Very High Chemical Resistance To Many Aggressive Substances
Includes Thread Guards
No
Wheel/Tread Hardness
94 Shore A
Tread Color
Dark Gray
Load Capacity
75 kg
Caster Break Type
Stop Fix Brake (Total Lock)
Tread
Standard
Swivel Raceway Type
Double Ball
ESD Conductive
No
Series
LRXA Series

Description

Swivel With Brake
