  6. Swivel Plate Caster, PU, 3-1/8", 240 lb.

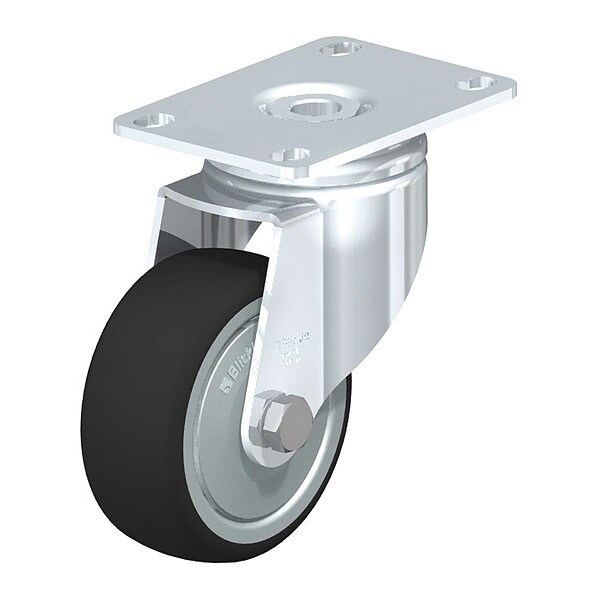

Blickle Swivel Plate Caster, PU, 3-1/8", 240 lb. LKPA-PATH 80KF-12 - main

Swivel Plate Caster, PU, 3-1/8", 240 lb.

  • Mfr # LKPA-PATH 80KF-12

  • Zoro # G0889478

product price:  $23.59
/ea

Key Features

System of Measurement
Inch
Wheel/Tread Material
Nylon/Thermoplastic Polyurethane
Caster Brake Type
No Brake Included
Wheel Width
1-1/4in
Wheel Bearing Type
Precision Ball
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
LKPA-PATH 80KF-12
Zoro #
G0889478
UPC #
-
Country of Origin
Germany

Dimensions

Wheel Width
1-1/4in
Mounting Plate Size
2-1/2 in x 3-5/8 in
Mounting Plate Thickness
0.118 in
Mounting Bolt Dia.
5/16 in
Stem Dia.
No Stem
Wheel Dia.
3-1/8in
Overall Height
4-3/8in
Swivel Radius
3-1/8 in

Details

System of Measurement
Inch
Wheel/Tread Material
Nylon/Thermoplastic Polyurethane
Caster Brake Type
No Brake Included
Wheel Bearing Type
Precision Ball
Wheel Hardness Rating
94 Shore A
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Steel
Core Color
Gray
Non-Marking
Yes
Number of Wheels
1
Outside Bolt Hole Spacing
1-3/4 in x 3-1/16 in
Load Rating
220 lb.
Caster Brake Included
No
Caster Sub-Type
Swivel
Caster Stem Type
No Stem/Plate Included
Item
Swivel Caster
Tread Color
Dark Gray
Caster Mounting Type
Plate
Frame Finish
Zinc Plated
Inside Bolt Hole Spacing
1-3/4 in x 2-13/16 in
Application
Food Service, Food Processing, Drug Manufacturing, Retail, Industrial, Commercial, Automotive, Clean Room, Aerospace
Tread
Standard
Standards
RoHS, ICWM, NSF
Replacement Wheel
Mfr. No. PATH 80/8K-FK
Extended Lead
No
Load Rating Range
Light-Duty
Swivel Raceway Type
Double Ball
ESD Conductive
No
Load Capacity
265 lb
Wheel Core Material
Nylon
Includes Thread Guards
Yes
Resistant To
Very High Chemical Resistance To Many Aggressive Substances
Series
LKPA Series
Operating Temperature Range
-15 Degrees To 160 Degrees F

Description

Swivel
