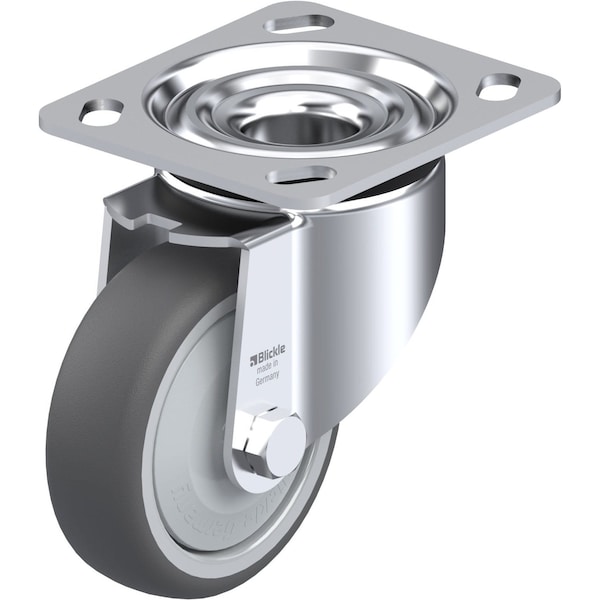

Blickle Swivel Plate Caster, PU, 4", 440 lb. LK-PATH 100KF-14 - main

Swivel Plate Caster, PU, 4", 440 lb.

  • Mfr # LK-PATH 100KF-14

  • Zoro # G0891849

product price:  $34.55
/ea

Key Features

Stem Dia.
No Stem
Wheel Dia.
4in
Wheel Width
1-1/4in
Load Rating
440 lb
Caster Brake Included
No
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
LK-PATH 100KF-14
Zoro #
G0891849
UPC #
-
Country of Origin
Germany

Dimensions

Stem Dia.
No Stem
Wheel Dia.
4in
Wheel Width
1-1/4in
Overall Height
5.12in
Mounting Bolt Dia.
3/8 in
Swivel Radius
3-3/4 in
Mounting Plate Size
4 in x 4-1/2 in
Mounting Plate Thickness
0.138 in

Details

Load Rating
440 lb
Caster Brake Included
No
Caster Sub-Type
Swivel
Caster Stem Type
No Stem/Plate Included
Item
Swivel Caster
Number of Wheels
1
Non-Marking
Yes
Tread
Standard
Core Color
Gray
Caster Brake Type
No Brake Included
System of Measurement
Inch
Replacement Wheel
Mfr. No. PATH 100/10K-FK
Application
Food Service, Food Processing, Drug Manufacturing, Retail, Industrial, Commercial, Automotive, Clean Room, Aerospace
Caster Mounting Type
Plate
Frame Finish
Zinc Plated
Inside Bolt Hole Spacing
3 in x 3 in
Standards
RoHS, ICWM
Tread Color
Dark Gray
Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Caster Frame Material
Steel
Extended Lead
No
Number of Mounting Holes
4
Includes Thread Guards
Yes
Load Rating Range
Medium Duty
Wheel Core Material
Nylon
Tread Shape
Standard
Series
LK Series
Swivel Raceway Type
Double Ball
ESD Conductive
No
Resistant To
Very High Chemical Resistance To Many Aggressive Substances
Load Capacity
440 lb
Wheel Bearing Type
Precision Ball
Wheel/Tread Material
Nylon/Thermoplastic Polyurethane
Wheel Hardness Rating
94 Shore A
Operating Temperature Range
-15 Degrees To 160 Degrees F

Description

Swivel
