  11. Swivel Plate Caster, PU, 4", Truck Lock
Blickle Swivel Plate Caster, PU, 4", Truck Lock HRLK-ALTH 100K - main

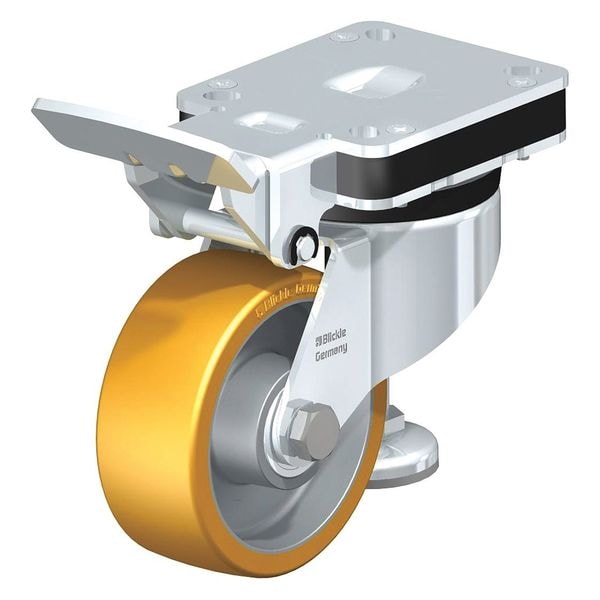

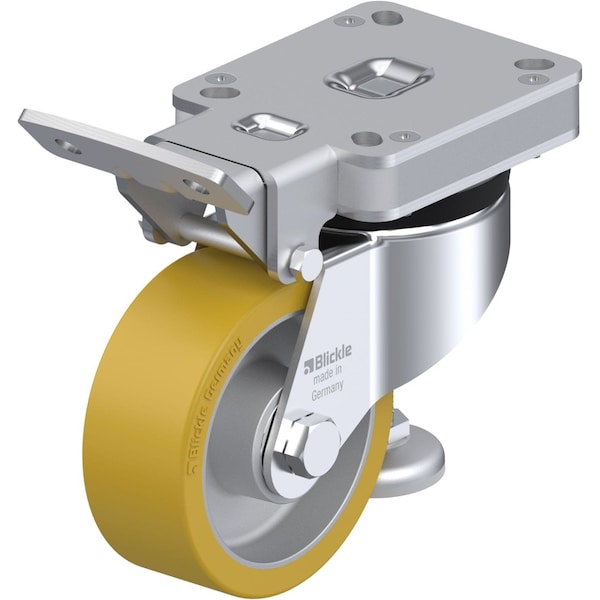

Swivel Plate Caster, PU, 4", Truck Lock

  • Mfr # HRLK-ALTH 100K

  • Zoro # G0896100

product price: $234.99
/ea
Free Shipping & Returns

Key Features

Caster Sub-Type
Swivel
System of Measurement
Metric
Wheel/Tread Material
Aluminum/Polyurethane Elastomer
Caster Brake Type
Integrated Truck Lock
Wheel Dia.
3.9in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HRLK-ALTH 100K
Zoro #
G0896100
UPC #
-
Country of Origin
Germany

Dimensions

Wheel Dia.
3.9in
Wheel Width
1.574in
Mounting Plate Size
85 mm x 100 mm
Mounting Plate Thickness
4 mm
Mounting Bolt Dia.
5/16 in
Overall Height
5-1/2in
Stem Dia.
No Stem
Swivel Radius
115 mm
Retracted Height
140 mm
Maximum Leveling Height
142 mm

Details

Item
Leveling Caster
Caster Sub-Type
Swivel
System of Measurement
Metric
Wheel/Tread Material
Aluminum/Polyurethane Elastomer
Caster Brake Type
Integrated Truck Lock
Load Rating
507 lb.
Caster Mounting Type
Plate
Wheel Bearing Type
Precision Ball
Wheel Hardness Rating
92 Shore A
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Steel
Core Color
Silver
Non-Marking
Yes
Number of Wheels
1
Outside Bolt Hole Spacing
60 mm x 80 mm
Inside Bolt Hole Spacing
60 mm x 80 mm
Caster Brake Included
Yes
Caster Stem Type
No Stem/Plate Included
Standards
RoHS, ICWM
Tread
Standard
Application
Used For Leveling Applications
Tread Color
Light Brown
Includes
Leveling Foot
Frame Finish
Zinc Plated
Extended Lead
No
Load Rating Range
Heavy-Duty
Swivel Raceway Type
Double Ball
Wheel Core Material
Aluminum
Load Capacity
230 kg
Series
HRLK Series
Resistant To
High Chemical Resistance To Many Aggressive Substances
Includes Thread Guards
No
ESD Conductive
No
Operating Temperature Range
-25 Degrees To 70 Degrees C

Description

Plate Caster
