Shop BLICKLE

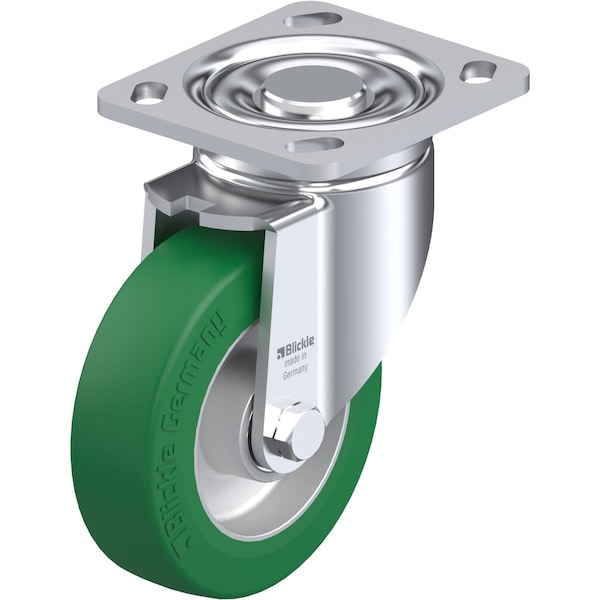

Swivel Plate Caster, PU, 5", 770 lb., Overall Height: 6-1/2"

  • Mfr # LH-ALST 125K-14

  • Zoro # G0895041

product price:  $101.99
/ea
Free Shipping & Returns

Key Features

Load Rating
770 lb
Overall Height
6-1/2in
Caster Sub-Type
Swivel
Caster Brake Included
No
Wheel Dia.
5in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
LH-ALST 125K-14
Zoro #
G0895041
UPC #
-
Country of Origin
Germany

Dimensions

Overall Height
6-1/2in
Wheel Dia.
5in
Wheel Width
1-9/16in
Stem Dia.
No Stem
Mounting Bolt Dia.
3/8 in
Swivel Radius
4-1/4 in
Mounting Plate Thickness
0.236 in
Mounting Plate Size
4 in x 4-1/2 in

Details

Load Rating
770 lb
Item
Swivel
Caster Sub-Type
Swivel
Caster Brake Included
No
Number of Wheels
1
Caster Stem Type
No Stem/Plate Included
Core Color
Silver
Non-Marking
Yes
Tread Color
Green
Inside Bolt Hole Spacing
3 in x 3 in
Caster Mounting Type
Plate
Frame Finish
Zinc Plated
Tread
Standard
Standards
RoHS, ICWM
Application
Food Service, Food Processing, Drug Manufacturing, Retail, Industrial, Commercial, Automotive, Clean Room, Aerospace
Caster Brake Type
No Brake Included
Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Replacement Wheel
Mfr. No. ALST 125/15K
System of Measurement
Inch
Extended Lead
No
Caster Frame Material
Steel
Wheel Core Material
Aluminum
Load Rating Range
Heavy-Duty
Number of Mounting Holes
4
Resistant To
High Chemical Resistance To Many Aggressive Substances
Tread Shape
Standard
Accessories
Optional: RI-04.14 (Directional Lock)
Load Capacity
770 lb
Series
LH Series
Includes Thread Guards
No
ESD Conductive
No
Swivel Raceway Type
Double Ball
Wheel/Tread Material
Aluminum/Polyurethane Elastomer
Wheel Hardness Rating
75 Shore A
Wheel Bearing Type
Precision Ball
Operating Temperature Range
-15 Degrees To 160 Degrees F

Description

Swivel
