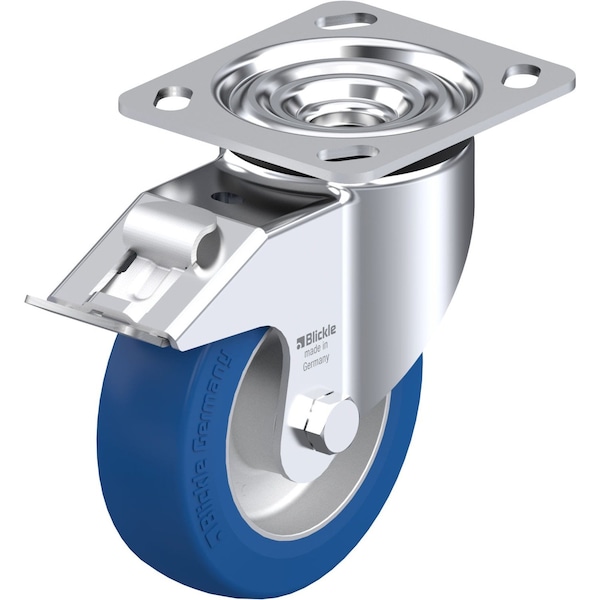

Blickle Swivel Plate Caster, PU, 5", Brake LK-ALBS 125K-14-FI - main

Swivel Plate Caster, PU, 5", Brake

  • Mfr # LK-ALBS 125K-14-FI

  • Zoro # G0892040

product price:  $90.15
/ea
Free Shipping & Returns

Key Features

Caster Stem Type
No Stem/Plate Included
Wheel Dia.
5in
Load Rating
770 lb.
Stem Dia.
No Stem
Caster Sub-Type
Swivel
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
LK-ALBS 125K-14-FI
Zoro #
G0892040
UPC #
-
Country of Origin
Germany

Dimensions

Wheel Dia.
5in
Stem Dia.
No Stem
Wheel Width
1-9/16in
Overall Height
6.1in
Mounting Bolt Dia.
3/8 in
Swivel Radius
4-3/8 in
Mounting Plate Size
4 in x 4-1/2 in
Mounting Plate Thickness
0.138 in

Details

Caster Stem Type
No Stem/Plate Included
Item
Swivel Caster With Brake
Load Rating
770 lb.
Caster Sub-Type
Swivel
Number of Wheels
1
Caster Brake Included
Yes
Caster Brake Type
Stop Fix Brake (Total Lock)
Includes
Stop-Fix Total-Lock Brake
Inside Bolt Hole Spacing
3 in x 3 in
Caster Mounting Type
Plate
Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Non-Marking
Yes
Core Color
Silver
Standards
RoHS, ICWM
Replacement Wheel
Mfr. No. ALBS 125/15K
Application
Food Service, Food Processing, Drug Manufacturing, Retail, Industrial, Commercial, Automotive, Clean Room, Aerospace
System of Measurement
Inch
Tread
Standard
Frame Finish
Zinc Plated
Tread Color
Blue
Caster Frame Material
Steel
Extended Lead
No
Wheel Core Material
Aluminum
Resistant To
High Chemical Resistance To Many Aggressive Substances
Number of Mounting Holes
4
ESD Conductive
No
Tread Shape
Standard
Load Capacity
770 lb
Series
LK Series
Swivel Raceway Type
Double Ball
Load Rating Range
Heavy-Duty
Includes Thread Guards
No
Wheel Bearing Type
Precision Ball
Wheel/Tread Material
Aluminum/Polyurethane Elastomer
Wheel Hardness Rating
75 Shore A
Operating Temperature Range
-15 Degrees To 160 Degrees F

Description

Plate Caster
