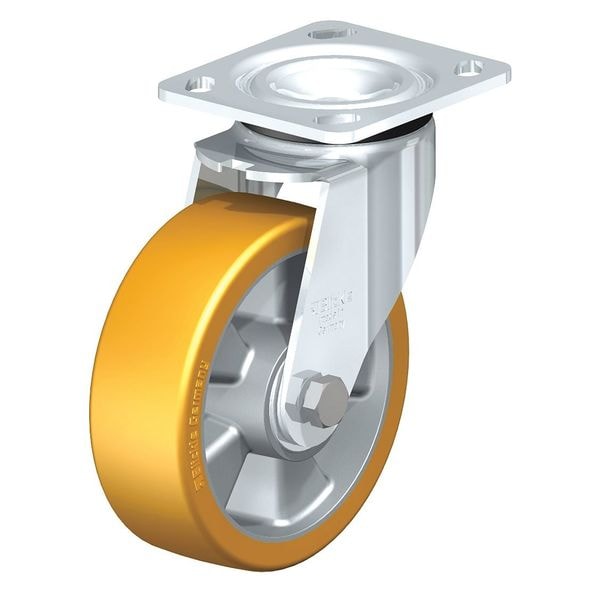

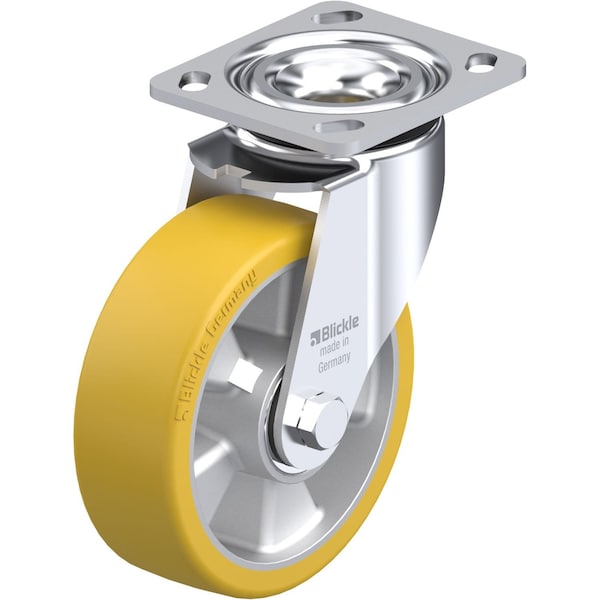

Swivel Plate Caster, PU, 6", 1100 lb.

  • Mfr # LEH-ALTH 150K-14

  • Zoro # G0893687

product price:  $97.35
/ea
Free Shipping & Returns

Key Features

Caster Stem Type
No Stem/Plate Included
Wheel Width
2in
Stem Dia.
No Stem
Overall Height
7.52in
Caster Sub-Type
Swivel
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
LEH-ALTH 150K-14
Zoro #
G0893687
UPC #
-
Country of Origin
Germany

Dimensions

Wheel Width
2in
Stem Dia.
No Stem
Overall Height
7.52in
Wheel Dia.
6in
Mounting Bolt Dia.
3/8 in
Swivel Radius
5-1/8 in
Mounting Plate Size
4 in x 4-1/2 in
Mounting Plate Thickness
0.197 in

Details

Caster Stem Type
No Stem/Plate Included
Caster Sub-Type
Swivel
Load Rating
1100 lb.
Number of Wheels
1
Caster Brake Included
No
Item
Swivel Caster
Replacement Wheel
Mfr. No. ALTH 150/20K
Core Color
Silver
Caster Brake Type
No Brake Included
Inside Bolt Hole Spacing
3 in x 3 in
Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Caster Mounting Type
Plate
Tread
Standard
Tread Color
Light Brown
Frame Finish
Zinc Plated
Application
Food Service, Food Processing, Drug Manufacturing, Retail, Industrial, Commercial, Automotive, Clean Room, Aerospace
Non-Marking
Yes
System of Measurement
Inch
Standards
RoHS, ICWM
Caster Frame Material
Steel
Extended Lead
No
Number of Mounting Holes
4
Tread Shape
Standard
Accessories
Optional: RI-04.14 (Directional Lock)
Series
LEH Series
Load Rating Range
Heavy-Duty
ESD Conductive
No
Resistant To
High Chemical Resistance To Many Aggressive Substances
Wheel Core Material
Aluminum
Swivel Raceway Type
Double Ball
Includes Thread Guards
No
Load Capacity
1100 lb
Wheel Hardness Rating
92 Shore A
Wheel Bearing Type
Precision Ball
Wheel/Tread Material
Aluminum/Polyurethane Elastomer
Operating Temperature Range
-15 Degrees To 160 Degrees F

Description

Plate Caster
