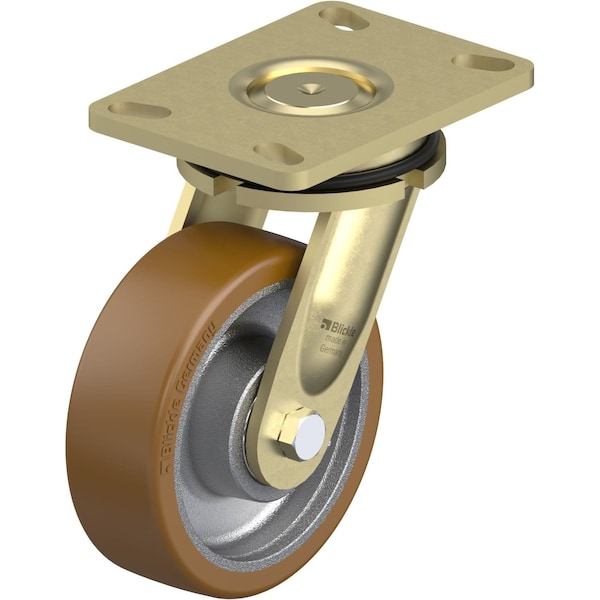

Blickle Swivel Plate Caster, PU, 6", 1650 lb., Caster Wheel/Tread Material: Cast Iron/Polyurethane LS-GB 150K-16 - main

Swivel Plate Caster, PU, 6", 1650 lb., Caster Wheel/Tread Material: Cast Iron/Polyurethane

  • Mfr # LS-GB 150K-16

  • Zoro # G0895242

product price:  $238.99
/ea
Free Shipping & Returns

Key Features

Wheel Width
2in
Caster Stem Type
No Stem/Plate Included
Load Rating
1650 lb.
Wheel Dia.
6in
Caster Sub-Type
Swivel
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
LS-GB 150K-16
Zoro #
G0895242
UPC #
-
Country of Origin
Germany

Dimensions

Wheel Width
2in
Wheel Dia.
6in
Overall Height
7.87in
Stem Dia.
No Stem
Mounting Bolt Dia.
1/2 in
Swivel Radius
5-1/8 in
Mounting Plate Size
4-1/2 in x 6-1/4 in
Mounting Plate Thickness
0.315 in

Details

Caster Stem Type
No Stem/Plate Included
Load Rating
1650 lb.
Caster Sub-Type
Swivel
Item
Swivel Caster
Number of Wheels
1
Caster Brake Included
No
System of Measurement
Inch
Tread
Standard
Caster Brake Type
No Brake Included
Non-Marking
Yes
Caster Mounting Type
Plate
Standards
RoHS, ICWM
Tread Color
Brown
Inside Bolt Hole Spacing
2-7/16 in x 4-15/16 in
Frame Finish
Zinc Plated, Yellow Passivated
Outside Bolt Hole Spacing
3-3/8 in x 5-1/4 in
Core Color
Gray
Replacement Wheel
Mfr. No. GB 150/20K
Application
Food Service, Food Processing, Drug Manufacturing, Retail, Industrial, Commercial, Automotive, Clean Room, Aerospace
Caster Frame Material
Steel
Extended Lead
No
Number of Mounting Holes
4
ESD Conductive
No
Swivel Raceway Type
Single Ball/Tapered Roller Bearing
Load Rating Range
Heavy-Duty
Accessories
Optional: RI-LS-16 (Directional Lock)
Wheel Core Material
Cast Iron
Tread Shape
Standard
Includes Thread Guards
No
Load Capacity
1650 lb
Resistant To
High Chemical Resistance To Many Aggressive Substances
Series
LS Series
Wheel Bearing Type
Precision Ball
Wheel Hardness Rating
92 Shore A
Wheel/Tread Material
Cast Iron/Polyurethane
Operating Temperature Range
-15 Degrees To 160 Degrees F

Description

Swivel
