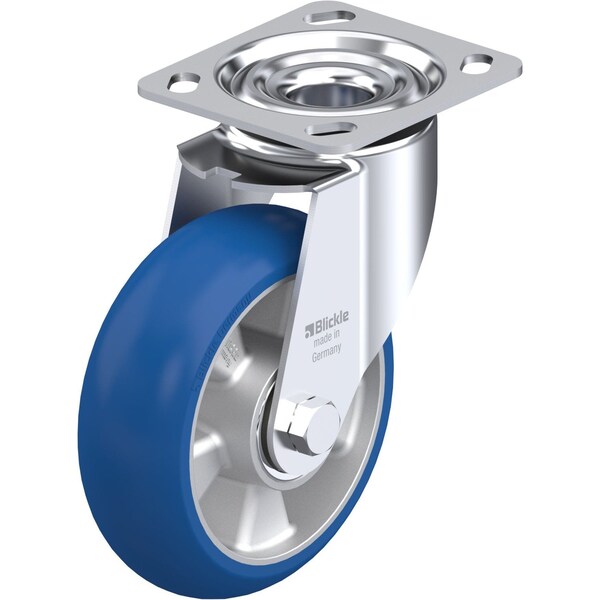

Swivel Plate Caster, PU, 6", 660 lb., Caster Wheel Shape: Extra Crowned

Mfr # LE-ALBS 150K-14-CO
Zoro # G0892083

118.33

Free Shipping & Returns

Key Features

Overall Height

7-1/2in

Wheel Dia.

6in

Number of Wheels

Caster Stem Type

No Stem/Plate Included

Wheel Width

2in

See all product information

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Create Account

Get 10% off your order

Specifications

Product Information

MFR #: LE-ALBS 150K-14-CO
Zoro #: G0892083
UPC #: -
Country of Origin: Germany

Dimensions

Overall Height: 7-1/2in
Wheel Dia.: 6in
Wheel Width: 2in
Stem Dia.: No Stem
Mounting Bolt Dia.: 3/8 in
Swivel Radius: 5-1/8 in
Mounting Plate Thickness: 0.138 in
Mounting Plate Size: 4 in x 4-1/2 in

Details

Number of Wheels: 1
Item: Swivel
Caster Stem Type: No Stem/Plate Included
Load Rating: 660 lb
Caster Sub-Type: Swivel
Caster Brake Included: No
Core Color: Silver
Includes: Extra Crowned Tread
Tread: Crowned
Caster Brake Type: No Brake Included
Application: Food Service, Food Processing, Drug Manufacturing, Retail, Industrial, Commercial, Automotive, Clean Room, Aerospace
Outside Bolt Hole Spacing: 2-5/8 in x 3-5/8 in
Inside Bolt Hole Spacing: 3 in x 3 in
Replacement Wheel: Mfr. No. ALBS 150/20K-CO
Standards: RoHS, ICWM
Tread Color: Blue
Frame Finish: Zinc Plated
System of Measurement: Inch
Non-Marking: Yes
Caster Mounting Type: Plate
Extended Lead: No
Caster Frame Material: Steel
Accessories: Optional: RI-04.14 (Directional Lock)
Load Rating Range: Heavy-Duty
Load Capacity: 660 lb
Swivel Raceway Type: Double Ball
Series: LE Series
Tread Shape: Extra Crowned
Resistant To: High Chemical Resistance To Many Aggressive Substances
Number of Mounting Holes: 4
ESD Conductive: No
Includes Thread Guards: No
Wheel Core Material: Aluminum
Wheel Hardness Rating: 75 Shore A
Wheel/Tread Material: Aluminum/Polyurethane Elastomer
Wheel Bearing Type: Precision Ball
Operating Temperature Range: -15 Degrees To 160 Degrees F

Description

Swivel
