  6. Swivel Plate Caster, PU, 6", Brake

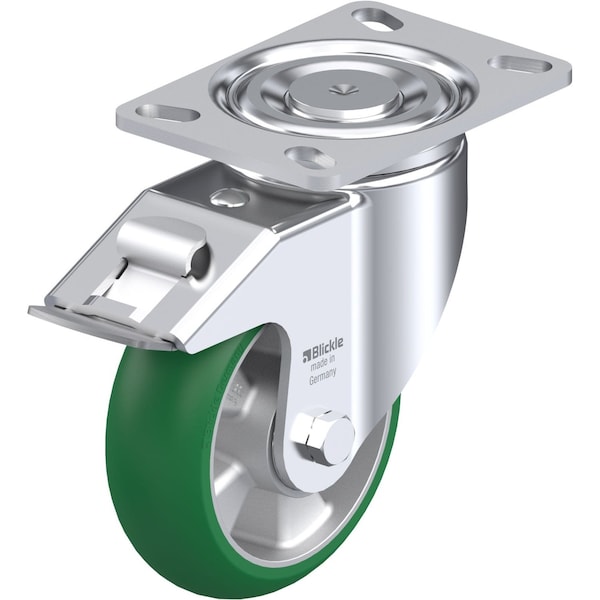

Blickle Swivel Plate Caster, PU, 6", Brake LH-ALST 150K-16-FI-CO - main

Swivel Plate Caster, PU, 6", Brake

  • Mfr # LH-ALST 150K-16-FI-CO

  • Zoro # G0895017

product price:  $176.99
/ea
Free Shipping & Returns

Key Features

Wheel/Tread Material
Aluminum/Polyurethane Elastomer
Caster Brake Type
Stop Fix Brake (Total Lock)
Wheel Width
2in
Load Rating
1100 lb.
Caster Mounting Type
Plate
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
LH-ALST 150K-16-FI-CO
Zoro #
G0895017
UPC #
-
Country of Origin
Germany

Dimensions

Wheel Width
2in
Mounting Plate Size
4-1/2 in x 6-1/4 in
Mounting Plate Thickness
0.236 in
Mounting Bolt Dia.
1/2 in
Stem Dia.
No Stem
Wheel Dia.
6in
Overall Height
7.76in
Swivel Radius
5-9/16 in

Details

Item
Swivel Caster With Brake
Wheel/Tread Material
Aluminum/Polyurethane Elastomer
Caster Brake Type
Stop Fix Brake (Total Lock)
Load Rating
1100 lb.
Caster Mounting Type
Plate
Wheel Bearing Type
Precision Ball
Number of Mounting Holes
4
Tread Shape
Extra Crowned
Core Color
Silver
Non-Marking
Yes
Number of Wheels
1
Outside Bolt Hole Spacing
3-3/8 in x 5-1/4 in
Inside Bolt Hole Spacing
2-7/16 in x 4-15/16 in
Caster Stem Type
No Stem/Plate Included
Caster Brake Included
Yes
Caster Sub-Type
Swivel
Frame Finish
Zinc Plated
Tread
Crowned
System of Measurement
Inch
Includes
Stop-Fix Total-Lock Brake, Extra Crowned Tread
Application
Food Service, Food Processing, Drug Manufacturing, Retail, Industrial, Commercial, Automotive, Clean Room, Aerospace
Standards
RoHS, ICWM
Tread Color
Green
Replacement Wheel
Mfr. No. ALST 150/20K-CO
Extended Lead
No
Caster Frame Material
Steel
Accessories
Optional: RI-05.16 (Directional Lock)
Resistant To
High Chemical Resistance To Many Aggressive Substances
Load Capacity
1100 lb
Includes Thread Guards
No
Series
LH Series
Wheel Core Material
Aluminum
ESD Conductive
No
Load Rating Range
Heavy-Duty
Swivel Raceway Type
Double Ball
Wheel Hardness Rating
75 Shore A
Operating Temperature Range
-15 Degrees To 160 Degrees F

Description

Swivel With Brake
