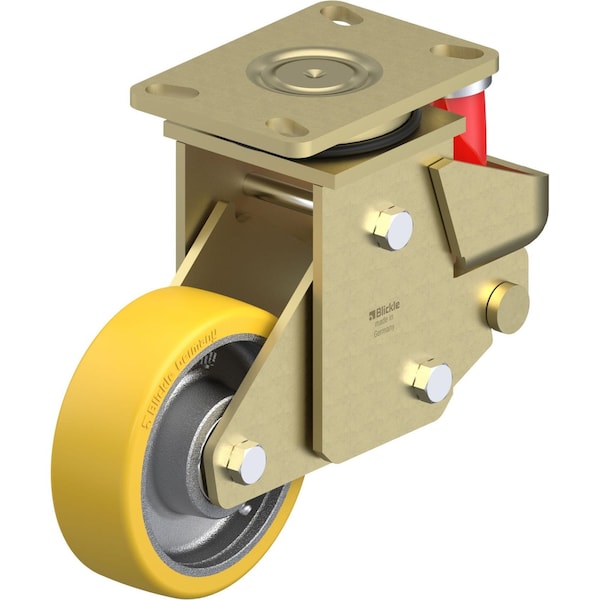

Blickle Swivel Plate Caster, PU, 8", 2200 lb., Caster Load Rating Range: Heavy-Duty LSFE-GTH 200K-16 - main

Swivel Plate Caster, PU, 8", 2200 lb., Caster Load Rating Range: Heavy-Duty

  • Mfr # LSFE-GTH 200K-16

  • Zoro # G0895802

product price:  $354.99
/ea
Free Shipping & Returns

Key Features

Stem Dia.
No Stem
Overall Height
10.43in
Number of Wheels
1
Caster Sub-Type
Swivel
Wheel Width
2in
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
LSFE-GTH 200K-16
Zoro #
G0895802
UPC #
-
Country of Origin
Germany

Dimensions

Stem Dia.
No Stem
Overall Height
10.43in
Wheel Width
2in
Wheel Dia.
8in
Mounting Bolt Dia.
1/2 in
Swivel Radius
8 in
Mounting Plate Size
4-1/2 in x 6-1/4 in
Mounting Plate Thickness
0.315 in

Details

Number of Wheels
1
Caster Sub-Type
Swivel
Caster Brake Included
No
Load Rating
2,200 lb
Item
Swivel Caster
Caster Stem Type
No Stem/Plate Included
Application
Food Service, Food Processing, Drug Manufacturing, Retail, Industrial, Commercial, Automotive, Clean Room, Aerospace
Caster Brake Type
No Brake Included
Standards
RoHS, ICWM
Caster Mounting Type
Plate
System of Measurement
Inch
Non-Marking
Yes
Tread
Standard
Replacement Wheel
Mfr. No. GTH 200/20K
Frame Finish
Zinc Plated, Yellow Passivated
Inside Bolt Hole Spacing
2-7/16 in x 4-15/16 in
Tread Color
Light Brown
Core Color
Gray
Outside Bolt Hole Spacing
3-3/8 in x 5-1/4 in
Extended Lead
No
Caster Frame Material
Steel
Includes Thread Guards
No
Load Rating Range
Heavy-Duty
Tread Shape
Standard
ESD Conductive
No
Series
LSFE Series
Wheel Core Material
Cast Iron
Resistant To
High Chemical Resistance To Many Aggressive Substances
Swivel Raceway Type
Single Ball/Tapered Roller Bearing
Max. Spring Deflection
1 in
Number of Mounting Holes
4
Load Capacity
610 lb
Wheel/Tread Material
Cast Iron/Polyurethane Elastomer
Wheel Hardness Rating
92 Shore A
Wheel Bearing Type
Precision Ball
Maximum Compression Force
1100 lb
Operating Temperature Range
-15 Degrees To 160 Degrees F

Description

Swivel
