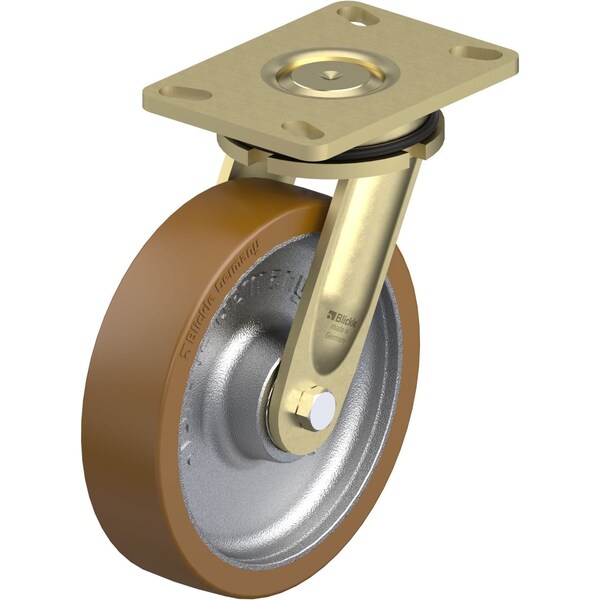

Blickle Swivel Plate Caster, PU, 8", 2200 lb., Caster Wheel/Tread Material: Cast Iron/Polyurethane LS-GB 200K-16 - main

Swivel Plate Caster, PU, 8", 2200 lb., Caster Wheel/Tread Material: Cast Iron/Polyurethane

  • Mfr # LS-GB 200K-16

  • Zoro # G0895251

product price:  $239.99
/ea
Free Shipping & Returns

Key Features

Overall Height
9.65in
Caster Stem Type
No Stem/Plate Included
Caster Sub-Type
Swivel
Wheel Width
2in
Caster Brake Included
No
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
LS-GB 200K-16
Zoro #
G0895251
UPC #
-
Country of Origin
Germany

Dimensions

Overall Height
9.65in
Wheel Width
2in
Stem Dia.
No Stem
Wheel Dia.
8in
Mounting Bolt Dia.
1/2 in
Swivel Radius
6-3/8 in
Mounting Plate Thickness
0.315 in
Mounting Plate Size
4-1/2 in x 6-1/4 in

Details

Caster Stem Type
No Stem/Plate Included
Caster Sub-Type
Swivel
Caster Brake Included
No
Number of Wheels
1
Item
Swivel Caster
Load Rating
2200 lb.
Tread Color
Brown
Frame Finish
Zinc Plated, Yellow Passivated
Caster Mounting Type
Plate
Non-Marking
Yes
Caster Brake Type
No Brake Included
Core Color
Gray
Application
Food Service, Food Processing, Drug Manufacturing, Retail, Industrial, Commercial, Automotive, Clean Room, Aerospace
Tread
Standard
Outside Bolt Hole Spacing
3-3/8 in x 5-1/4 in
Standards
RoHS, ICWM
System of Measurement
Inch
Inside Bolt Hole Spacing
2-7/16 in x 4-15/16 in
Replacement Wheel
Mfr. No. GB 200/20K
Extended Lead
No
Caster Frame Material
Steel
Wheel Core Material
Cast Iron
ESD Conductive
No
Swivel Raceway Type
Single Ball/Tapered Roller Bearing
Tread Shape
Standard
Series
LS Series
Includes Thread Guards
No
Resistant To
High Chemical Resistance To Many Aggressive Substances
Number of Mounting Holes
4
Accessories
Optional: RI-LS-16 (Directional Lock)
Load Rating Range
Heavy-Duty
Load Capacity
2200 lb
Wheel/Tread Material
Cast Iron/Polyurethane
Wheel Hardness Rating
92 Shore A
Wheel Bearing Type
Precision Ball
Operating Temperature Range
-15 Degrees To 160 Degrees F

Description

Swivel
