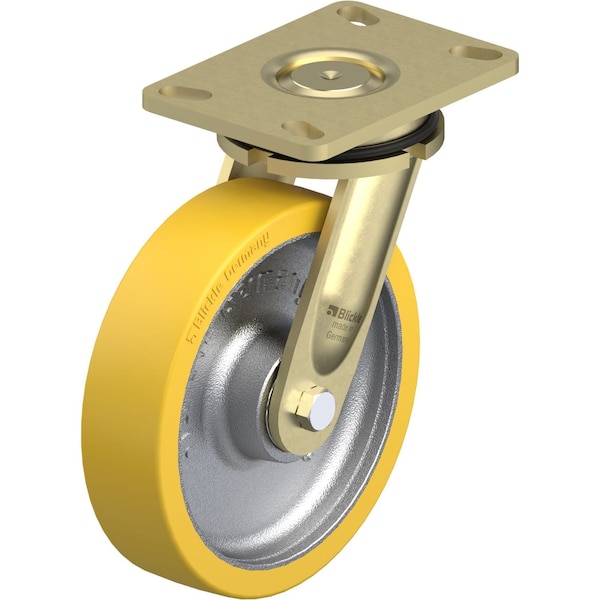

Blickle Swivel Plate Caster, PU, 8", 2200 lb., Overall Height: 9.65" LS-GTH 200K-16 - main

Swivel Plate Caster, PU, 8", 2200 lb., Overall Height: 9.65"

  • Mfr # LS-GTH 200K-16

  • Zoro # G0895699

product price:  $208.99
/ea
Free Shipping & Returns

Key Features

Stem Dia.
No Stem
Caster Sub-Type
Swivel
Caster Brake Included
No
Number of Wheels
1
Overall Height
9.65in
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
LS-GTH 200K-16
Zoro #
G0895699
UPC #
-
Country of Origin
Germany

Dimensions

Stem Dia.
No Stem
Overall Height
9.65in
Wheel Dia.
8in
Wheel Width
2in
Mounting Bolt Dia.
1/2 in
Swivel Radius
6-3/8 in
Mounting Plate Thickness
0.315 in
Mounting Plate Size
4-1/2 in x 6-1/4 in

Details

Caster Sub-Type
Swivel
Caster Brake Included
No
Number of Wheels
1
Item
Swivel Caster
Caster Stem Type
No Stem/Plate Included
Load Rating
2,200 lb
Tread Color
Light Brown
Tread
Standard
Application
Food Service, Food Processing, Drug Manufacturing, Retail, Industrial, Commercial, Automotive, Clean Room, Aerospace
Frame Finish
Zinc Plated, Yellow Passivated
Replacement Wheel
Mfr. No. GTH 200/20K
Standards
RoHS, ICWM
Caster Mounting Type
Plate
Non-Marking
Yes
System of Measurement
Inch
Caster Brake Type
No Brake Included
Inside Bolt Hole Spacing
2-7/16 in x 4-15/16 in
Core Color
Gray
Outside Bolt Hole Spacing
3-3/8 in x 5-1/4 in
Caster Frame Material
Steel
Extended Lead
No
Resistant To
High Chemical Resistance To Many Aggressive Substances
Wheel Core Material
Cast Iron
Accessories
Optional: RI-LS-16 (Directional Lock)
Series
LS Series
Load Capacity
2200 lb
Includes Thread Guards
No
Load Rating Range
Heavy-Duty
ESD Conductive
No
Number of Mounting Holes
4
Swivel Raceway Type
Single Ball/Tapered Roller Bearing
Tread Shape
Standard
Wheel Bearing Type
Precision Ball
Wheel/Tread Material
Cast Iron/Polyurethane Elastomer
Wheel Hardness Rating
92 Shore A
Operating Temperature Range
-15 Degrees To 160 Degrees F

Description

Swivel
