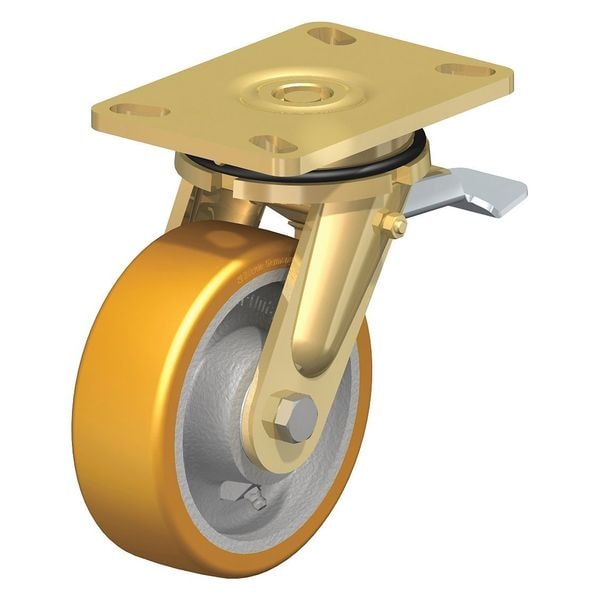

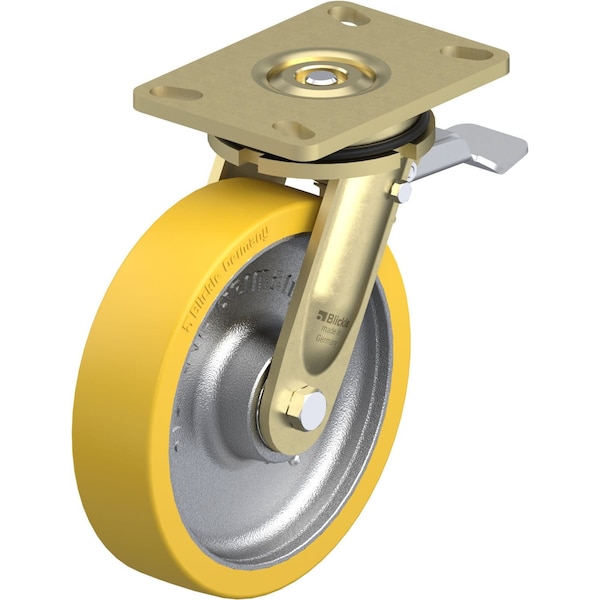

Blickle Swivel Plate Caster, PU, 8", Brake LS-GTH 200K-16-ST - main

Swivel Plate Caster, PU, 8", Brake

  • Mfr # LS-GTH 200K-16-ST

  • Zoro # G0895629

product price:  $293.99
/ea
Free Shipping & Returns

Key Features

Stem Dia.
No Stem
Number of Wheels
1
Overall Height
9.65in
Wheel Width
2in
Caster Brake Included
Yes
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
LS-GTH 200K-16-ST
Zoro #
G0895629
UPC #
-
Country of Origin
Germany

Dimensions

Stem Dia.
No Stem
Overall Height
9.65in
Wheel Width
2in
Wheel Dia.
8in
Mounting Bolt Dia.
1/2 in
Swivel Radius
6-3/8 in
Mounting Plate Thickness
0.315 in
Mounting Plate Size
4-1/2 in x 6-1/4 in

Details

Number of Wheels
1
Item
Swivel Caster With Brake
Caster Brake Included
Yes
Caster Sub-Type
Swivel
Caster Stem Type
No Stem/Plate Included
Load Rating
2,200 lb
Frame Finish
Zinc Plated, Yellow Passivated
Caster Mounting Type
Plate
Application
Food Service, Food Processing, Drug Manufacturing, Retail, Industrial, Commercial, Automotive, Clean Room, Aerospace
Non-Marking
Yes
Includes
Stop-Top Total-Lock Brake
Tread Color
Light Brown
System of Measurement
Inch
Tread
Standard
Standards
RoHS, ICWM
Outside Bolt Hole Spacing
3-3/8 in x 5-1/4 in
Core Color
Gray
Inside Bolt Hole Spacing
2-7/16 in x 4-15/16 in
Caster Brake Type
Stop Top Brake (Total Lock)
Replacement Wheel
Mfr. No. GTH 200/20K
Extended Lead
No
Caster Frame Material
Steel
Load Rating Range
Heavy-Duty
Resistant To
High Chemical Resistance To Many Aggressive Substances
Wheel Core Material
Cast Iron
Swivel Raceway Type
Single Ball/Tapered Roller Bearing
Number of Mounting Holes
4
Includes Thread Guards
No
Tread Shape
Standard
Accessories
Optional: RI-LS-16 (Directional Lock)
Load Capacity
2200 lb
Series
LS Series
ESD Conductive
No
Wheel Hardness Rating
92 Shore A
Wheel/Tread Material
Cast Iron/Polyurethane Elastomer
Wheel Bearing Type
Precision Ball
Operating Temperature Range
-15 Degrees To 160 Degrees F

Description

Swivel With Brake
