  6. Swivel Plate Caster, Solid Rbr, 5", 550 lb., Number of Wheels: 1

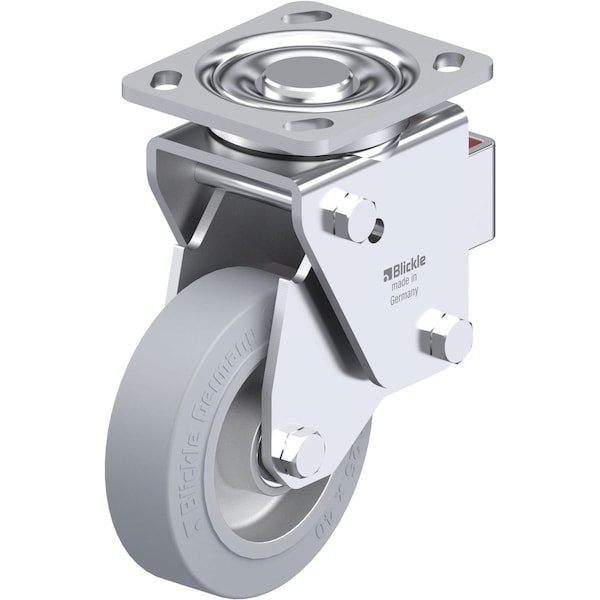

Blickle Swivel Plate Caster, Solid Rbr, 5", 550 lb., Number of Wheels: 1 LHF-ALEV 125K-14-SG - main

Swivel Plate Caster, Solid Rbr, 5", 550 lb., Number of Wheels: 1

  • Mfr # LHF-ALEV 125K-14-SG

  • Zoro # G0895218

product price:  $195.99
/ea
Free Shipping & Returns

Key Features

Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
Aluminum/Solid Rubber
Caster Brake Type
No Brake Included
Wheel Dia.
5in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
LHF-ALEV 125K-14-SG
Zoro #
G0895218
UPC #
-
Country of Origin
Germany

Dimensions

Wheel Dia.
5in
Wheel Width
1-9/16in
Mounting Plate Size
4 in x 4-1/2 in
Mounting Plate Thickness
0.236 in
Mounting Bolt Dia.
3/8 in
Stem Dia.
No Stem
Overall Height
7.87in
Swivel Radius
4-1/4 in

Details

Item
Swivel Caster
Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
Aluminum/Solid Rubber
Caster Brake Type
No Brake Included
Load Rating
550 lb.
Caster Mounting Type
Plate
Wheel Bearing Type
Precision Ball
Wheel Hardness Rating
65 Shore A
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Steel
Core Color
Silver
Non-Marking
Yes
Number of Wheels
1
Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Inside Bolt Hole Spacing
3 in x 3 in
Caster Brake Included
No
Caster Stem Type
No Stem/Plate Included
Tread Color
Gray
Application
Retail, Industrial, Commercial
Replacement Wheel
Mfr. No. ALEV 125/15K-SG
Includes
Steel Spring Shock Absorbing
Tread
Standard
Standards
RoHS, ICWM
Frame Finish
Zinc Plated
Extended Lead
No
Swivel Raceway Type
Double Ball
Max. Spring Deflection
13/16 in
Series
LHF Series
Load Rating Range
Heavy-Duty
ESD Conductive
No
Includes Thread Guards
No
Load Capacity
300 lb
Wheel Core Material
Aluminum
Resistant To
High Chemical Resistance To Many Aggressive Substances, Except Oils
Operating Temperature Range
-15 Degrees To 175 Degrees F
Maximum Compression Force
530 lb

Description

Swivel
