  6. Swivel Plate Caster, Solid Rbr, 6", 880 lb., Caster Load Rating Range: Heavy-Duty

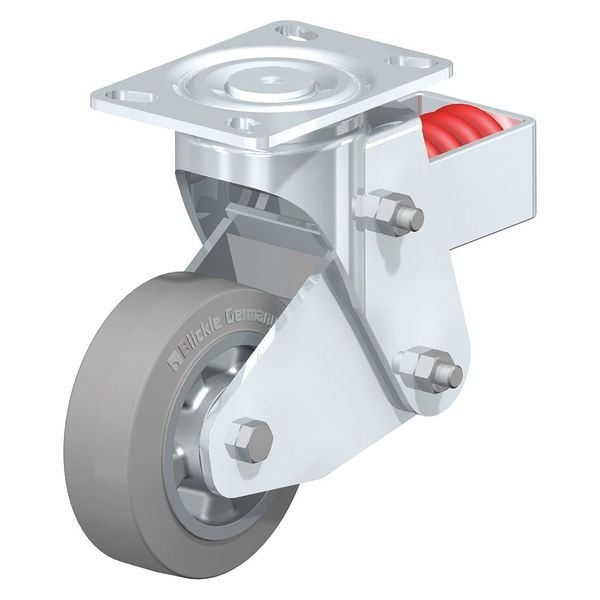

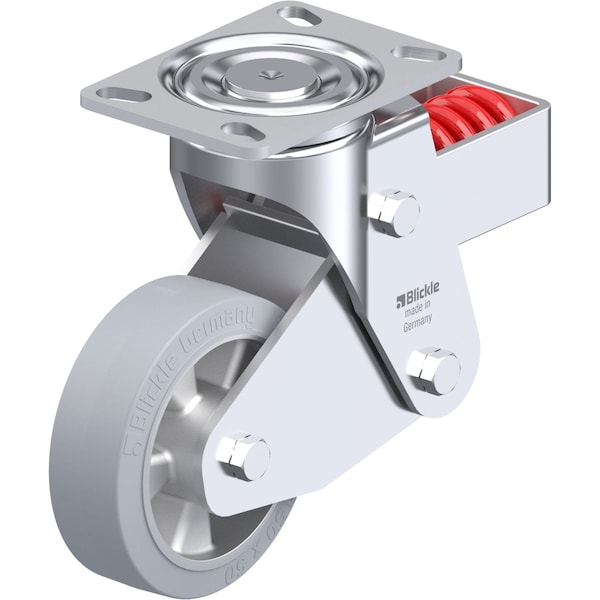

Blickle Swivel Plate Caster, Solid Rbr, 6", 880 lb., Caster Load Rating Range: Heavy-Duty LHF-ALEV 150K-16-SG - main

Swivel Plate Caster, Solid Rbr, 6", 880 lb., Caster Load Rating Range: Heavy-Duty

  • Mfr # LHF-ALEV 150K-16-SG

  • Zoro # G0895260

product price:  $323.99
/ea
Free Shipping & Returns

Key Features

Caster Brake Included
No
Overall Height
9-1/2in
Load Rating
880 lb.
Wheel Dia.
6in
Caster Sub-Type
Swivel
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
LHF-ALEV 150K-16-SG
Zoro #
G0895260
UPC #
-
Country of Origin
Germany

Dimensions

Overall Height
9-1/2in
Wheel Dia.
6in
Stem Dia.
No Stem
Wheel Width
2in
Mounting Bolt Dia.
1/2 in
Swivel Radius
5-9/16 in
Mounting Plate Thickness
0.236 in
Mounting Plate Size
4-1/2 in x 6-1/4 in

Details

Caster Brake Included
No
Load Rating
880 lb.
Caster Sub-Type
Swivel
Number of Wheels
1
Item
Swivel Caster
Caster Stem Type
No Stem/Plate Included
Outside Bolt Hole Spacing
3-3/8 in x 5-1/4 in
Non-Marking
Yes
Tread Color
Gray
Includes
Steel Spring Shock Absorbing
Standards
RoHS, ICWM
Caster Mounting Type
Plate
Replacement Wheel
Mfr. No. ALEV 150/20K-SG
Caster Brake Type
No Brake Included
System of Measurement
Inch
Application
Retail, Industrial, Commercial
Core Color
Silver
Tread
Standard
Frame Finish
Zinc Plated
Inside Bolt Hole Spacing
2-7/16 in x 4-15/16 in
Extended Lead
No
Caster Frame Material
Steel
Load Rating Range
Heavy-Duty
Wheel Core Material
Aluminum
Max. Spring Deflection
1 in
Series
LHF Series
Tread Shape
Standard
Includes Thread Guards
No
ESD Conductive
No
Swivel Raceway Type
Double Ball
Load Capacity
500 lb
Resistant To
High Chemical Resistance To Many Aggressive Substances, Except Oils
Number of Mounting Holes
4
Wheel Bearing Type
Precision Ball
Wheel Hardness Rating
65 Shore A
Wheel/Tread Material
Aluminum/Solid Rubber
Maximum Compression Force
880 lb
Operating Temperature Range
-15 Degrees To 175 Degrees F

Description

Swivel
