Shop BLICKLE

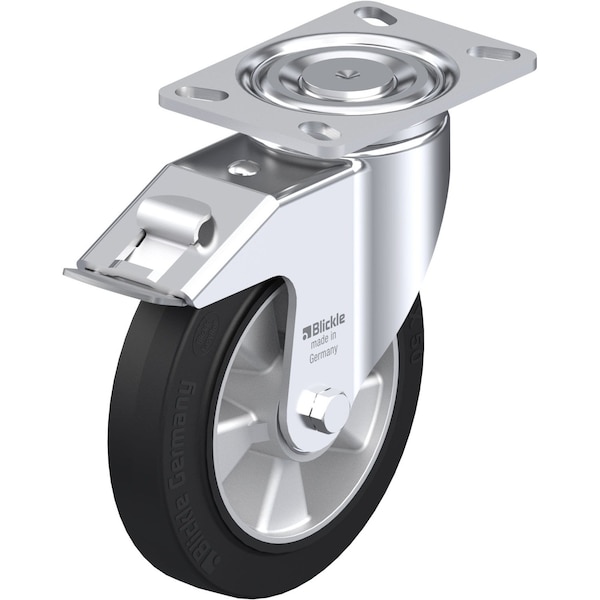

Swivel Plate Caster, Solid Rubbr, 8", Brake, Caster Load Rating Range: Heavy-Duty

  • Mfr # LH-ALEV 200K-16-FI
  • Zoro # G0894247
product price:
$
187.99
/ea
Free Shipping & Returns

Key Features

Wheel Dia.
8in
Stem Dia.
No Stem
Overall Height
9.65in
Caster Stem Type
No Stem/Plate Included
Caster Sub-Type
Swivel
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
LH-ALEV 200K-16-FI
Zoro #
G0894247
UPC #
-
Country of Origin
Germany

Dimensions

Wheel Dia.
8in
Stem Dia.
No Stem
Overall Height
9.65in
Wheel Width
2in
Mounting Bolt Dia.
1/2 in
Swivel Radius
6-3/4 in
Mounting Plate Size
4-1/2 in x 6-1/4 in
Mounting Plate Thickness
0.236 in

Details

Caster Stem Type
No Stem/Plate Included
Caster Sub-Type
Swivel
Caster Brake Included
Yes
Number of Wheels
1
Load Rating
1,100 lb
Item
Swivel With Brake
Caster Mounting Type
Plate
Outside Bolt Hole Spacing
3-3/8 in x 5-1/4 in
Includes
Stop-Fix Total-Lock Brake
Core Color
Silver
Application
Retail, Industrial, Commercial
Replacement Wheel
Mfr. No. ALEV 200/20K
Standards
RoHS, ICWM
System of Measurement
Inch
Non-Marking
No
Frame Finish
Zinc Plated
Tread Color
Black
Inside Bolt Hole Spacing
2-7/16 in x 4-15/16 in
Caster Brake Type
Stop Fix Brake (Total Lock)
Tread
Standard
Caster Frame Material
Steel
Extended Lead
No
Resistant To
High Chemical Resistance To Many Aggressive Substances, Except Oils
Tread Shape
Standard
Number of Mounting Holes
4
Load Rating Range
Heavy-Duty
Wheel Core Material
Aluminum
Swivel Raceway Type
Double Ball
Accessories
Optional: RI-05.16 (Directional Lock)
Includes Thread Guards
No
Series
LH Series
ESD Conductive
No
Load Capacity
1100 lb
Wheel Hardness Rating
65 Shore A
Wheel/Tread Material
Aluminum/Solid Rubber
Wheel Bearing Type
Precision Ball
Operating Temperature Range
-15 Degrees To 175 Degrees F

Description

Swivel With Brake
