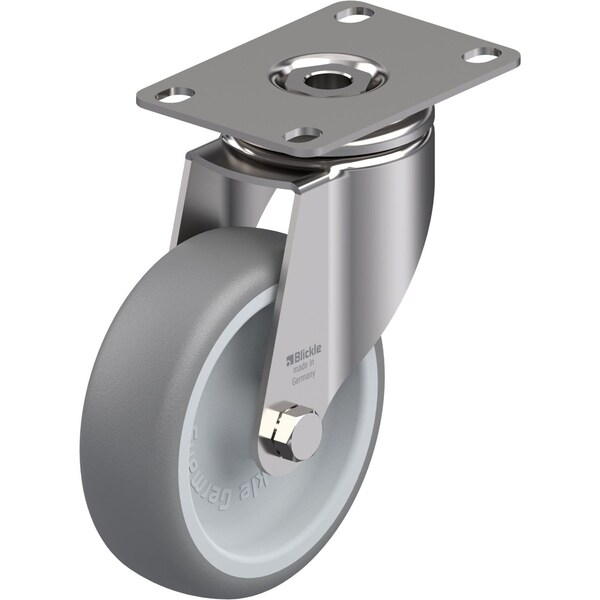

Blickle Swivel Plate Caster, TPR, 4", 240 lb. LKPXA-TPA 101G-12 - main

Swivel Plate Caster, TPR, 4", 240 lb.

  • Mfr # LKPXA-TPA 101G-12

  • Zoro # G0889137

product price:  $42.75
/ea

Key Features

Stem Dia.
No Stem
Caster Sub-Type
Swivel
Caster Stem Type
No Stem/Plate Included
Overall Height
5-3/8in
Load Rating
240 lb.
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
LKPXA-TPA 101G-12
Zoro #
G0889137
UPC #
-
Country of Origin
Germany

Dimensions

Stem Dia.
No Stem
Overall Height
5-3/8in
Wheel Width
1-1/4in
Wheel Dia.
4in
Mounting Bolt Dia.
5/16 in
Swivel Radius
3-9/16 in
Mounting Plate Thickness
0.089 in
Mounting Plate Size
2-1/2 in x 3-5/8 in

Details

Caster Sub-Type
Swivel
Caster Stem Type
No Stem/Plate Included
Load Rating
240 lb.
Item
Swivel Caster
Caster Brake Included
No
Number of Wheels
1
Core Color
Gray
Application
Food Service, Food Processing, Drug Manufacturing, Retail, Industrial, Commercial, Automotive, Clean Room, Aerospace
Tread
Standard
Standards
RoHS, ICWM, NSF
System of Measurement
Inch
Tread Color
Gray
Caster Mounting Type
Plate
Replacement Wheel
Mfr. No. TPA 101/12G
Non-Marking
Yes
Frame Finish
Stainless Steel
Inside Bolt Hole Spacing
1-3/4 in x 2-13/16 in
Outside Bolt Hole Spacing
1-3/4 in x 3-1/16 in
Caster Brake Type
No Brake Included
Extended Lead
No
Caster Frame Material
Stainless Steel
Load Rating Range
Light-Duty
Includes Thread Guards
No
ESD Conductive
No
Number of Mounting Holes
4
Swivel Raceway Type
Double Ball
Resistant To
Very High Chemical Resistance To Many Aggressive Substances
Wheel Core Material
Polypropylene
Series
LKPXA Series
Tread Shape
Standard
Load Capacity
245 lb
Wheel Bearing Type
Plain
Wheel/Tread Material
Polypropylene/Thermoplastic Rubber Elastomer
Wheel Hardness Rating
85 Shore A
Operating Temperature Range
-4 Degrees To 140 Degrees F

Description

Swivel
