  6. Swivel Plate Caster, TPR, 4", 440 lb.

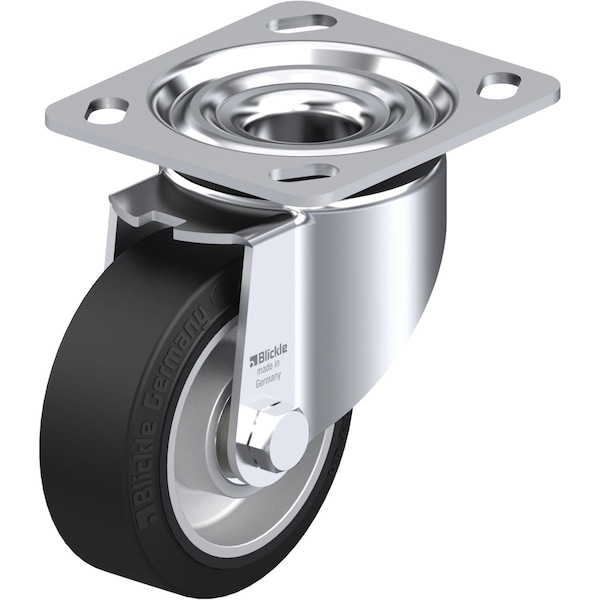

Blickle Swivel Plate Caster, TPR, 4", 440 lb. LK-ALEV 100K-14 - main

Swivel Plate Caster, TPR, 4", 440 lb.

  • Mfr # LK-ALEV 100K-14

  • Zoro # G0892269

product price:  $41.89
/ea

Key Features

System of Measurement
Inch
Wheel/Tread Material
Aluminum/Solid Rubber
Caster Brake Type
No Brake Included
Wheel Dia.
4in
Wheel Width
1-9/16in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
LK-ALEV 100K-14
Zoro #
G0892269
UPC #
-
Country of Origin
Germany

Dimensions

Wheel Dia.
4in
Wheel Width
1-9/16in
Mounting Plate Size
4 in x 4-1/2 in
Mounting Plate Thickness
0.138 in
Mounting Bolt Dia.
3/8 in
Overall Height
5.12in
Stem Dia.
No Stem
Swivel Radius
3-3/4 in

Details

Item
Swivel Caster
System of Measurement
Inch
Wheel/Tread Material
Aluminum/Solid Rubber
Caster Brake Type
No Brake Included
Load Rating
440 lb.
Caster Mounting Type
Plate
Wheel Bearing Type
Precision Ball
Wheel Hardness Rating
65 Shore A
Tread Shape
Standard
Caster Frame Material
Steel
Core Color
Silver
Non-Marking
No
Number of Wheels
1
Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Inside Bolt Hole Spacing
3 in x 3 in
Caster Stem Type
No Stem/Plate Included
Caster Brake Included
No
Caster Sub-Type
Swivel
Tread
Standard
Application
Retail, Industrial, Commercial
Replacement Wheel
Mfr. No. ALEV 100/15K
Frame Finish
Zinc Plated
Standards
RoHS, ICWM
Tread Color
Black
Extended Lead
No
Wheel Core Material
Aluminum
Includes Thread Guards
No
Number of Mounting Holes
4
Series
LK Series
Swivel Raceway Type
Double Ball
ESD Conductive
No
Resistant To
High Chemical Resistance To Many Aggressive Substances, Except Oils
Load Capacity
440 lb
Load Rating Range
Heavy-Duty
Operating Temperature Range
-15 Degrees To 175 Degrees F

Description

Swivel
