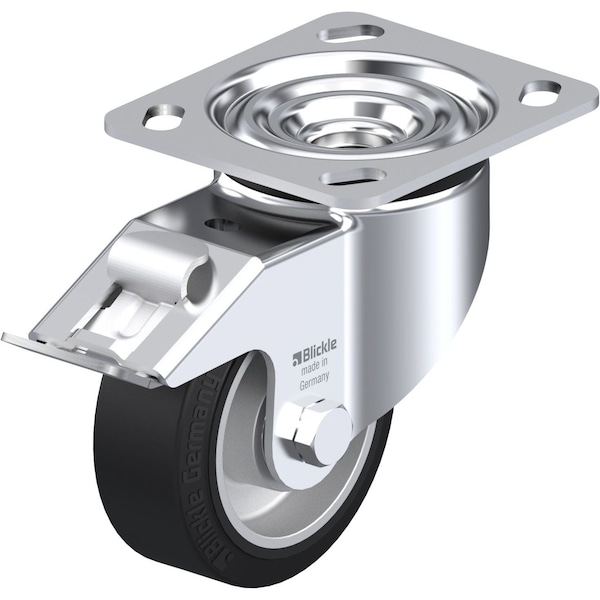

Blickle Swivel Plate Caster, TPR, 4", Brake, Caster Wheel/Tread Material: Aluminum/Solid Rubber LK-ALEV 100K-14-FI - main

Swivel Plate Caster, TPR, 4", Brake, Caster Wheel/Tread Material: Aluminum/Solid Rubber

  • Mfr # LK-ALEV 100K-14-FI

  • Zoro # G0892287

product price:  $49.19
/ea

Key Features

Wheel Dia.
4in
Caster Stem Type
No Stem/Plate Included
Caster Brake Included
Yes
Wheel Width
1-9/16in
Overall Height
5.12in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
LK-ALEV 100K-14-FI
Zoro #
G0892287
UPC #
-
Country of Origin
Germany

Dimensions

Wheel Dia.
4in
Wheel Width
1-9/16in
Overall Height
5.12in
Stem Dia.
No Stem
Mounting Bolt Dia.
3/8 in
Swivel Radius
3-3/4 in
Mounting Plate Thickness
0.138 in
Mounting Plate Size
4 in x 4-1/2 in

Details

Caster Stem Type
No Stem/Plate Included
Caster Brake Included
Yes
Caster Sub-Type
Swivel
Number of Wheels
1
Load Rating
440 lb.
Item
Swivel Caster With Brake
Tread Color
Black
Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
System of Measurement
Inch
Includes
Stop-Fix Total-Lock Brake
Replacement Wheel
Mfr. No. ALEV 100/15K
Standards
RoHS, ICWM
Frame Finish
Zinc Plated
Application
Retail, Industrial, Commercial
Caster Brake Type
Stop Fix Brake (Total Lock)
Non-Marking
No
Caster Mounting Type
Plate
Tread
Standard
Inside Bolt Hole Spacing
3 in x 3 in
Core Color
Silver
Caster Frame Material
Steel
Extended Lead
No
ESD Conductive
No
Series
LK Series
Wheel Core Material
Aluminum
Tread Shape
Standard
Swivel Raceway Type
Double Ball
Load Rating Range
Heavy-Duty
Includes Thread Guards
No
Resistant To
High Chemical Resistance To Many Aggressive Substances, Except Oils
Number of Mounting Holes
4
Load Capacity
440 lb
Wheel Bearing Type
Precision Ball
Wheel/Tread Material
Aluminum/Solid Rubber
Wheel Hardness Rating
65 Shore A
Operating Temperature Range
-15 Degrees To 175 Degrees F

Description

Swivel With Brake
