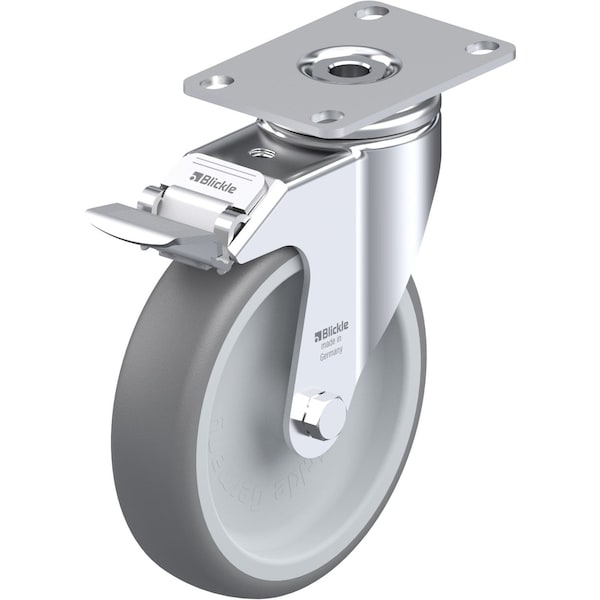

Blickle Swivel Plate Caster, TPR, 5", Brake LKPA-TPA 126G-12-FI - main

Swivel Plate Caster, TPR, 5", Brake

  • Mfr # LKPA-TPA 126G-12-FI

  • Zoro # G0889268

product price:  $27.15
/ea

Key Features

Number of Wheels
1
Wheel Dia.
5in
Wheel Width
1-1/4in
Load Rating
265 lb
Caster Brake Included
Yes
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
LKPA-TPA 126G-12-FI
Zoro #
G0889268
UPC #
-
Country of Origin
Germany

Dimensions

Wheel Dia.
5in
Wheel Width
1-1/4in
Stem Dia.
No Stem
Overall Height
6-5/16in
Mounting Bolt Dia.
5/16 in
Swivel Radius
4-1/16 in
Mounting Plate Thickness
0.118 in
Mounting Plate Size
2-1/2 in x 3-5/8 in

Details

Number of Wheels
1
Load Rating
265 lb
Caster Brake Included
Yes
Caster Stem Type
No Stem/Plate Included
Caster Sub-Type
Swivel
Item
Swivel Caster With Brake
Application
Food Service, Food Processing, Drug Manufacturing, Retail, Industrial, Commercial, Automotive, Clean Room, Aerospace
Non-Marking
Yes
Caster Mounting Type
Plate
Core Color
Gray
Frame Finish
Zinc Plated
Standards
RoHS, ICWM, NSF
Tread Color
Gray
System of Measurement
Inch
Inside Bolt Hole Spacing
1-3/4 in x 2-13/16 in
Includes
Stop-Fix Total-Lock Brake
Outside Bolt Hole Spacing
1-3/4 in x 3-1/16 in
Caster Brake Type
Stop Fix Brake (Total Lock)
Replacement Wheel
Mfr. No. TPA 126/12G
Tread
Standard
Extended Lead
No
Caster Frame Material
Steel
Load Capacity
265 lb
Series
LKPA Series
Tread Shape
Standard
Resistant To
Very High Chemical Resistance To Many Aggressive Substances
Number of Mounting Holes
4
Includes Thread Guards
No
Load Rating Range
Light-Duty
ESD Conductive
No
Swivel Raceway Type
Double Ball
Wheel Core Material
Polypropylene
Wheel Hardness Rating
85 Shore A
Wheel Bearing Type
Plain
Wheel/Tread Material
Polypropylene/Thermoplastic Rubber Elastomer
Operating Temperature Range
-4 Degrees To 140 Degrees F

Description

Plate Caster
